Remove/Install Radial Shaft Sealing Ring On Drive Pinion - AR35.30-P-4672S
Model 223 with engine 176, 256, 279, 656
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove | |||
| 1 | Remove propeller shaft (7). | Model 223 with engine 176, 256 | AR41.10-P-0050S |
| Model 223 with engine 656 | AR41.10-P-0050SB | ||
| Model 223 with engine 279 | AR41.10-P-0050SVZ | ||

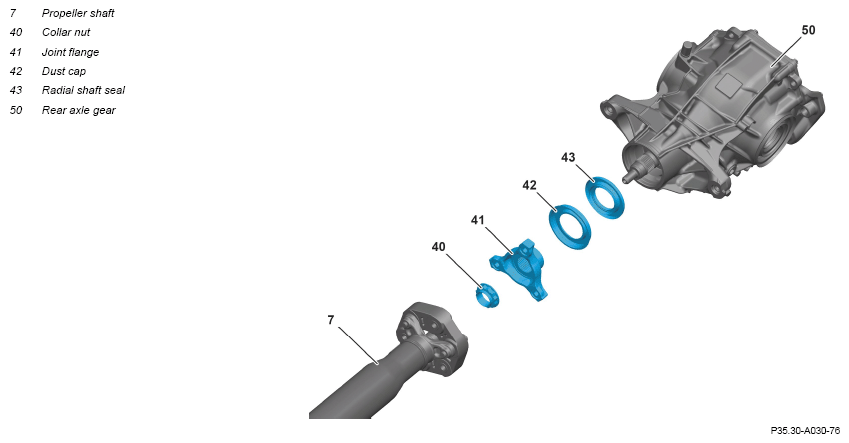

| 2 | Remove collar nut (40). | Fig 4 | |
| 3 | Remove joint flange (41). | Fig 1 | |
| 4 | Check joint flange (41) for damage. | If damage is found, ↓ Replace joint flange (41). |
|
| 5 | Pry radial shaft sealing ring (43) and dust cap (42) out of rear axle differential (50) using a suitable tool. | Do not damage seat of radial shaft sealing ring (43) in rear axle differential (50). Otherwise leaks may occur. |
|
| Install | |||
| 6 | Clean seat surface of radial shaft sealing ring (43) in rear axle differential (50). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 7 | Check seat surface of radial shaft sealing ring (43) in rear axle differential (50) for damage. |
If damage is found, ↓ Replace rear axle differential (50). Model 223 with engine 279 with code Z07 (B7 armoring on special protection version) |
AR35.31-P-0522SG |
| Model 223 with engine 176, 256, 279, 656 except code Z07 (B7 armoring on special protection version) | AR35.31-P-0522S | ||
| 8 | Coat inner sealing lip of radial shaft sealing ring (43) with transmission oil. | ||
| Universal hypoid gear oils (specification 235.7) | Do not apply any transmission oil at seat surface and outer circumference of radial shaft sealing ring (43). Otherwise leaks may occur. |
BB00.40-P-0235-07A | |
| 9 | Press radial shaft sealing ring (43) with dust cap (42) into rear axle differential (50). | Fig 5 | |
| Fig 3 | |||
| Fig 2 | |||
| 10 | Grease gearing of joint flange (41). | Molykote paste HTP special lubricating grease | *BR00.45-Z-1028-06A |
| 11 | Install joint flange (41). | ||
| 12 | Attach and caulk collar nut (40). | *BA35.31-P-1001-06G | |
| Fig 4 | |||
| 13 | Install propeller shaft (7). | Model 223 with engine 176, 256 | AR41.10-P-0050S |
| Model 223 with engine 656 | AR41.10-P-0050SB | ||
| Model 223 with engine 279 |
AR41.10-P-0050SVZ | ||
| Check | |||
| 14 | Check oil level in rear axle differential (50) and correct if necessary. | AR35.31-P-0520-08S | |
| Universal hypoid gear oils (specification 235.7) | BB00.40-P-0235-07A | ||
| *BA35.31-P-1004-02I | |||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| Sealant, Omnifit 100H (50 g) | *BR00.45-Z-1061-01A | ||
| 15 | Check rear axle differential (50) for leak tightness. | ||
| 16 | Lower vehicle with vehicle lift. | AR00.60-P-1006A |
REAR AXLE DIFFERENTIAL GEAR SET
| Number | Designation | Model 223 | |||
|---|---|---|---|---|---|
| BA35.31-P-1001-06G | Collar nut, joint flange to drive pinion | ALU rear axle differential 197 | M31 | Nm | 120 |
| ALU rear axle differential 205 | M31 | Nm | 120 | ||
| ALU rear axle differential 240 | M26 | Nm | 120 | ||
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA35.31-P-1004-02I | Filling screw on rear axle differential | Nm | 50 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
| BR00.45-Z-1028-06A | Molykote paste HTP special lubricating grease | Use corresponding commercially available repair materials. |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
