Remove/Install Front Elastomer Bearing For Rear Axle Differential Mounting - AR35.10-P-0053SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

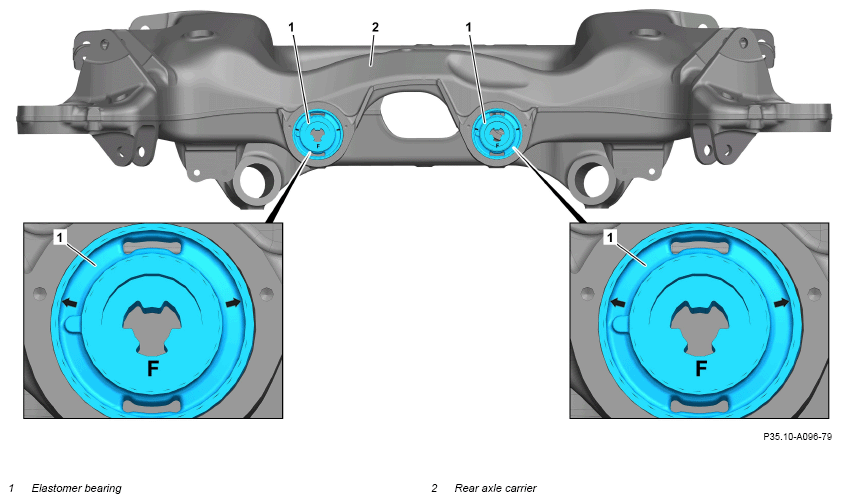

Shown on removed rear axle carrier (2)

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove rear axle differential.		AR35.31-P-0522SG
2	Remove left rear axle shaft.	Model 223 with engine 176, 256, 279, 656 with code Z07 (B7 armoring on special protection version)	AR35.30-P-0621S
3	Press elastomer bearing (1) out of rear axle carrier (2).	: The arrows on the elastomer bearings (1) must point toward the notches at the rear axle carrier (2). The letter (F) on the elastomer bearings (1) must be legible when pressing in.	AR35.10-P-0053-01SG
		Mobil Vacuoline 137 insertion agent, 0.5 L	*BR00.45-Z-1097-06A
		Extraction and insertion tool	Fig 1
		Hollow cylinder	Fig 3
		Hydraulic hose (complete)	Fig 4
		Hand pump	Fig 2
4	Install in the reverse order.

Fig 1: Identifying Extraction And Insertion Tool (223 589 04 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Hose (complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA
