Press Out/In Front Elastomer Bearing For Rear Axle Differential Transmission Mounting - AR35.10-P-0053-01SG

Model 223

with code Z07 (B7 armoring on special protection version)

Fig 1: Identifying Extraction And Insertion Tool (223 589 04 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Remove

Required special tools:

• Hand pump 652 589 00 33 21
• Hydraulic hose (complete) 652 589 00 33 23
• Hollow cylinder 652 589 00 33 22
• Extraction and insertion tool 223 589 04 43 00

Courtesy of MERCEDES-BENZ USA

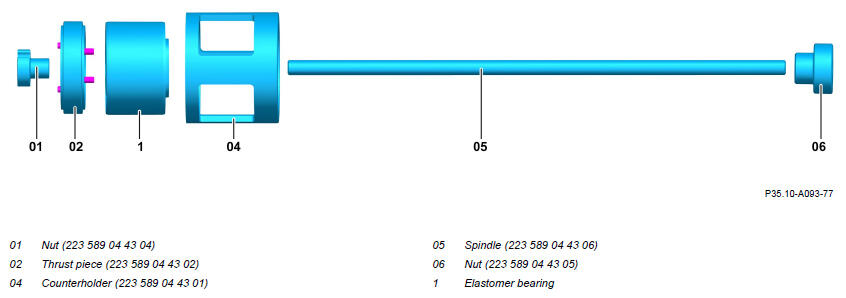

Required separate parts of extraction and insertion tool (223 589 04 43 00)

1. Attach hollow cylinder with hydraulic hose to hand pump.
2. Position nut (01) thrust piece (02) counterholder (04) and hollow cylinder with spindle (05) and nut (06) at rear axle carrier (2) and at elastomer bearing (1) as shown.
3. Press elastomer bearing (1) forward out of rear axle carrier (2).

   If hollow cylinder has reached its maximum stroke, release pressure at hand pump and turn nut (06) further onto spindle (05). Then repeat the press-out procedure.

   Install

   Required special tools:

   • Hand pump 652 589 00 33 21
   • Hydraulic hose (complete) 652 589 00 33 23
   • Hollow cylinder 652 589 00 33 22
   • Extraction and insertion tool 223 589 04 43 00

   Courtesy of MERCEDES-BENZ USA

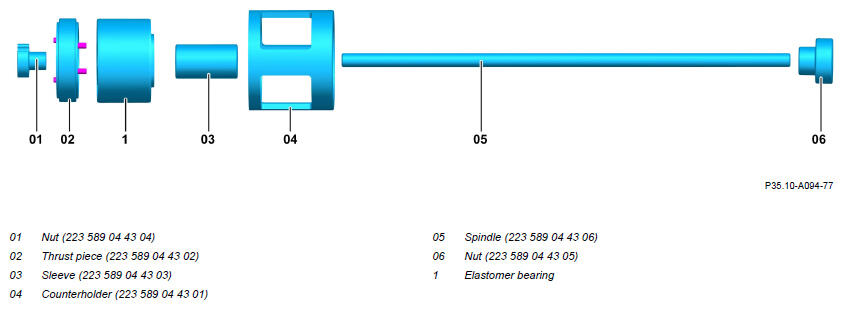

   Required separate parts of extraction and insertion tool (223 589 04 43 00)

4. Apply insertion agent at new elastomer bearing (1).

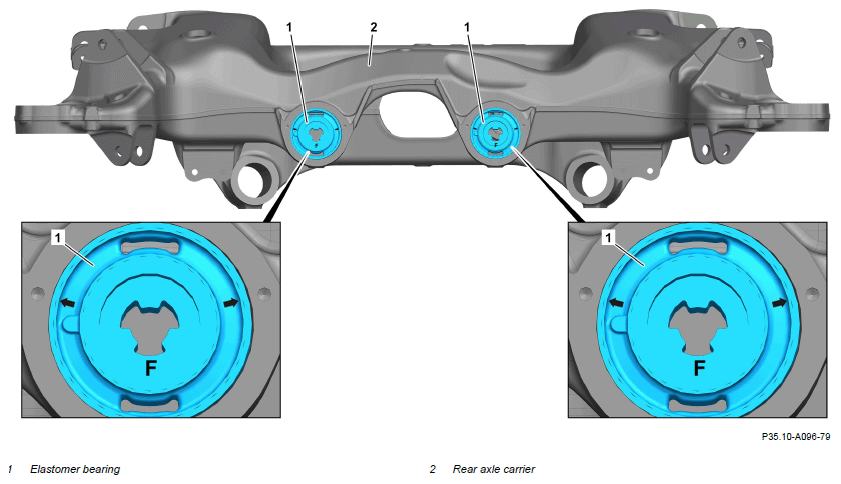

5. Position elastomer bearing (1) in correct position from front at rear axle carrier (2).

   Position elastomer bearing (1) as shown.

   The arrows on the elastomer bearing (1) must point toward the notches on the rear axle carrier (2).

   The letter (F) on the elastomer bearing (1) must be legible when pressing in.

6. Position nut (01) and thrust piece (02) from rear into bore at rear axle carrier (2).
7. Position sleeve (03) and hollow cylinder with counterholder (04) and spindle (05) at elastomer bearing (1).
8. Press elastomer bearing (1) into rear axle carrier (2).

   If hollow cylinder has reached its maximum stroke, release pressure at hand pump and turn nut (06) further onto spindle (05). Then repeat the press-in procedure.

9. Remove special tools.
