Remove/Install Elastomer Bearing Of Rear Suspension Of Rear Axle Carrier - AR35.10-P-0046S

Model 223 with engine 176, 256, 656

except code Z07 (B7 armoring on special protection version)

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown with code 201 (Rear axle steering)

Courtesy of MERCEDES-BENZ USA

Shown with code 201 (Rear axle steering)

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Notes on air suspension		AH32.22-P-1000-01T
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Shift transmission to N position.
2	Secure vehicle on vehicle lift.		AR00.60-P-1006A
3	Reduce pneumatic pressure of suspension struts using diagnostic system.
		The complete wheels must not touch the ground. Otherwise the suspension struts may suffer initial damage and malfunction at a later stage.	AD00.00-P-2000-06FR
4	Remove propeller shaft from rear axle differential, hang to one side and fix in place.	Model 223 with engine 176, 256 except code Z07 (B7 armoring on special protection version)	AR41.10-P-0050S
		Model 223 with engine 656 except code Z07 (B7 armoring on special protection version)	AR41.10-P-0050SB
5	Remove rear diagonal struts.		AR61.10-P-5142S
6	Remove covers under spring links.

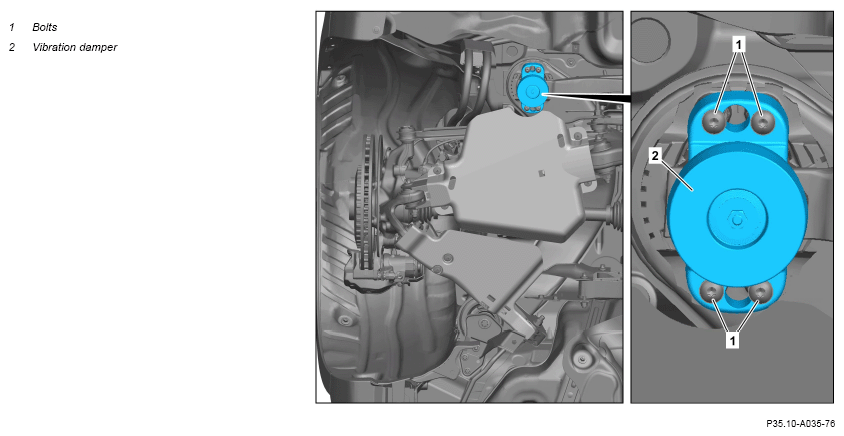

7	Remove screws (1) from left and right vibration damper (2) and remove vibration dampers (2).	Screw, vibration damper to rear elastomer bearing of rear axle carrier	*BA35.10-P-1012-01R

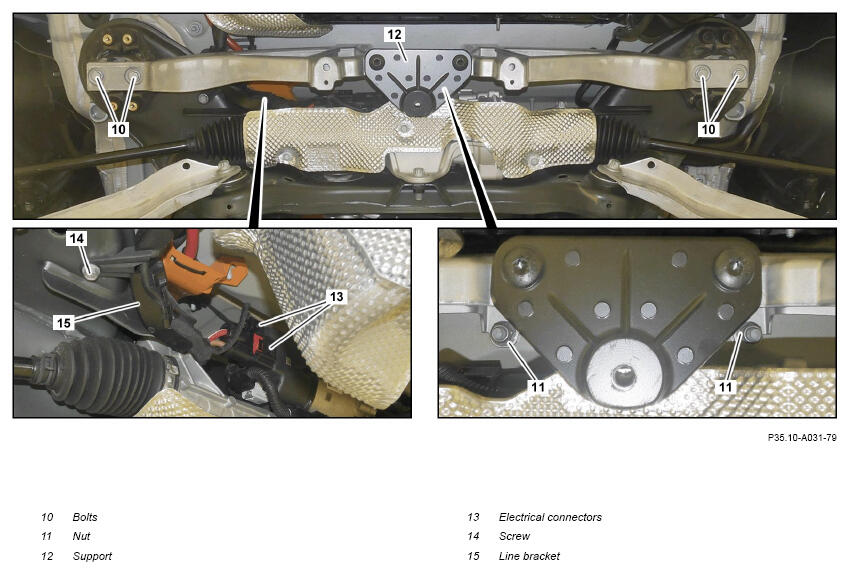

8	Remove screws (10).	Screw, support to rear suspension subframe carrier	*BA35.10-P-1013-01R
9	Remove nuts (11) and remove support (12).	Nut, support to rear-end floor	*BA35.10-P-1009-01R
10	Disconnect electrical connectors (13).	Model 223 with engine 176, 256, 656 with code 201 (Rear axle steering) except code Z07 (B7 armoring on special protection version) Model 223 with engine 176, 256, 656 with code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version)
11	Remove screw (14) and leave line bracket (15) hanging down at one side.	Model 223 with engine 176, 256, 656 with code 201 (Rear axle steering) except code Z07 (B7 armoring on special protection version) Model 223 with engine 176, 256, 656 with code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version)
12	Position lifting platform with mount at rear of rear
	000 588 25 62 00 Lift table		WS01.00-P-0264A

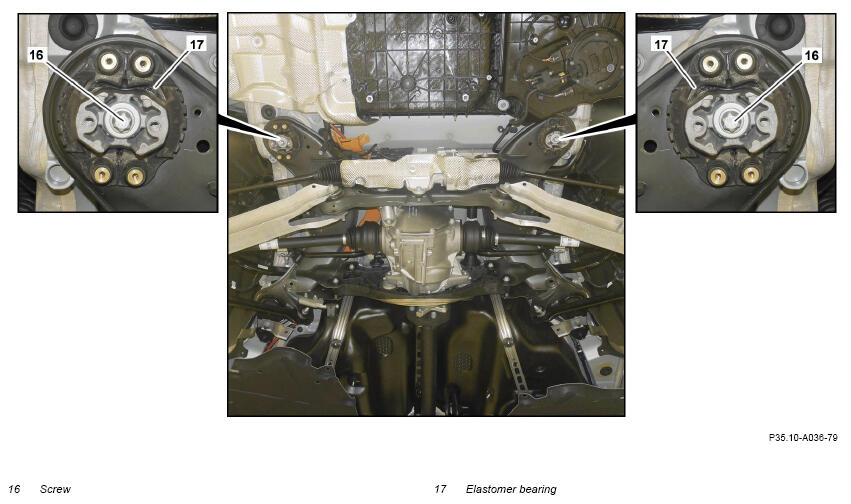

13	Remove bolts (16).	Do not use an impact wrench. Otherwise, the threads will be damaged. : Use compressed air to clean thread in frame floor assembly and check for correct seating of threaded inserts. Self-locking bolt securing rear elastomer bearing of rear axle carrier to frame floor assembly	*BA35.10-P-1003-01R
14	Carefully lower rear axle.	Do not stretch brake hoses and electric lines. Otherwise, the brake hoses and electric lines will be damaged. Maximum lowering dimension of rear axle	*BE35.00-P-1002-01A
15	Remove elastomer bearings (17).	Always replace elastomer bearings (17) in pairs.	AR35.10-P-0040-03S
		Mobil Vacuoline 137 insertion agent, 0.5 L	*BR00.45-Z-1097-06A
		Hydraulic hose (complete)	Fig 4
		Hollow cylinder	Fig 3
		Hand pump	Fig 2
		Extraction and insertion tool	Fig 5
		Extraction and insertion tool	Fig 1
		Securing belt	Fig 6
16	Install in the reverse order.
17	Perform wheel alignment measurement.		AR40.20-P-0200S

REAR AXLE, GENERAL

Number	Designation		Model 223
BE35.00-P-1002-01A	Maximum lowering dimension of rear axle	cm	8

REAR AXLE CARRIER

Number	Designation			Model 223
BA35.10-P-1003-01R	Self-locking bolt securing rear elastomer bearing of rear axle carrier to frame floor assembly	Stage 1	Nm	100
		Stage 2	∠°	-180
		Stage 3	Nm	100
		Stage 4	∠°	90

REAR AXLE CARRIER

Number	Designation		Model 223
BA35.10-P-1009-01R	Nut, support to rear-end floor	Nm	50

REAR AXLE CARRIER

Number	Designation		Model 223
BA35.10-P-1012-01R	Screw, vibration damper to rear elastomer bearing of rear axle carrier	Nm	9

REAR AXLE CARRIER

Number	Designation		Model 223
BA35.10-P-1013-01R	Screw, support to rear suspension subframe carrier	Nm	23

Fig 1: Identifying Extraction And Insertion Tool (204 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Hose (complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Extraction And Insertion Tool (223 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Securing Belt (001 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1097-06A	Mobil Vacuoline 137 insertion agent, 0.5 L	A 000 989 18 60 09
