Remove/Install Elastomer Bearing Of Front Suspension Of Rear Axle Carrier - AR35.10-P-0044S

Model 223 with engine 176, 256, 656

except code Z07 (B7 armoring on special protection version)

Shown on right side of vehicle with code 490 (Electrohydraulic suspension)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Notes on air suspension		AH32.22-P-1000-01T
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Shift transmission to N position.
2	Secure vehicle on vehicle lift.		AR00.60-P-1006A
3	Reduce pneumatic pressure of suspension struts using diagnostic system.
		The complete wheels must not touch the ground. Otherwise the suspension struts may suffer initial damage and malfunction at a later stage.	AD00.00-P-2000-06FR
4	Remove propeller shaft from rear axle differential, hang to one side and fix in place.	Model 223 with engine 176, 256, 656 except code Z07 (B7 armoring on special protection version) Model 223 with engine 176, 256 except code Z07 (B7 armoring on special protection version)	AR41.10-P-0050S
		Model 223 with engine 656 except code Z07 (B7 armoring on special protection version)	AR41.10-P-0050SB
5	Remove rear diagonal struts.		AR61.10-P-5142S
6	Remove covers under thrust arms.

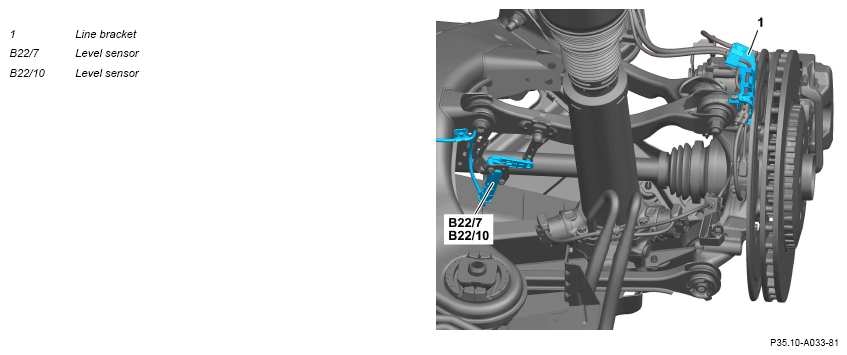

7	Unclip electric line from holder of level sensor (B22/7) and level sensor (B22/10).
8	Disconnect electrical connectors of level sensors (B22/7, B22/10) and leave electric lines hanging down at one side.
9	Unclip electric lines from line bracket (1) on left and right side of vehicle.

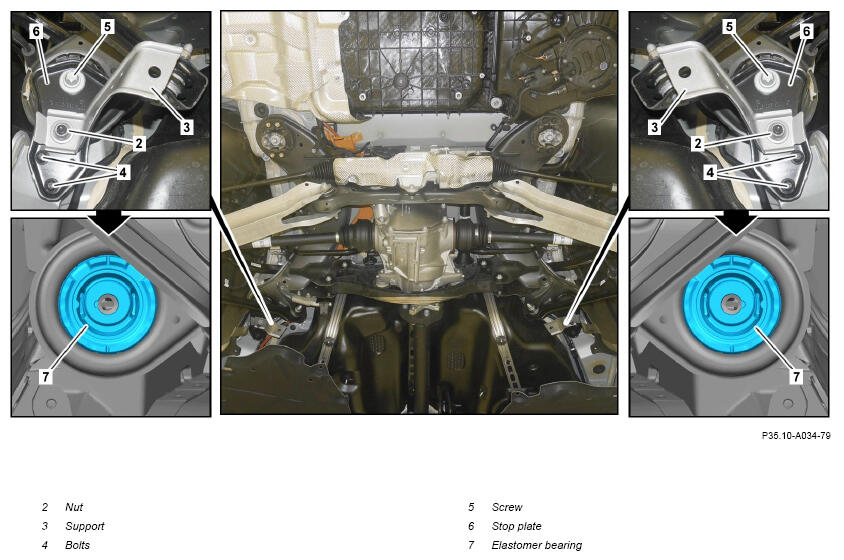

10	Remove nuts (2) and remove supports (3).	Nut, support diagonal strut to stop plate	*BA61.10-P-1020-01P
11	Remove screws (4).	Bolt, stop plate to body	*BA35.10-P-1002-01R
12	Position lifting platform with mount at front of rear axle.
	000 588 25 62 00 Lift table		WS01.00-P-0264A
13	Remove screws (5) and remove stop plates (6).	Do not use an impact wrench. Otherwise, the threads will be damaged. : Use compressed air to clean thread in frame floor assembly and check for correct seating of threaded inserts. Self-locking bolt securing front elastomer bearing of rear axle carrier to frame floor assembly	*BA35.10-P-1001-01R
14	Carefully lower rear axle.	Do not stretch brake hoses and electric lines.
		Otherwise, the brake hoses and electric lines will be damaged. Maximum lowering dimension of front rear axle	BE3500-P-1001-01A
15	Remove elastomer bearings (7).		AR35.10-P-0040-02S
		Always replace elastomer bearings (7) in pairs.
		Mobil Vacuoline 137 insertion agent, 0.5 L	*BR00.45-Z-1097-06A
		Hydraulic hose (complete)	Fig 5
		Hollow cylinder	Fig 3
		Hand pump	Fig 2
		Extraction and insertion tool	Fig 1
		Securing belt	Fig 4
16	Install in the reverse order.
17	Perform wheel alignment measurement.		AR40.20-P-0200S
