Remove/Install Front Elastomer Bearing Of Rear Axle Suspension - AR35.10-P-0040-02S
Model 223 with engine 176, 256, 656
except code Z07 (B7 armoring on special protection version)
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1097-06A | Mobil Vacuoline 137 insertion agent, 0.5 L | A 000 989 18 60 09 |

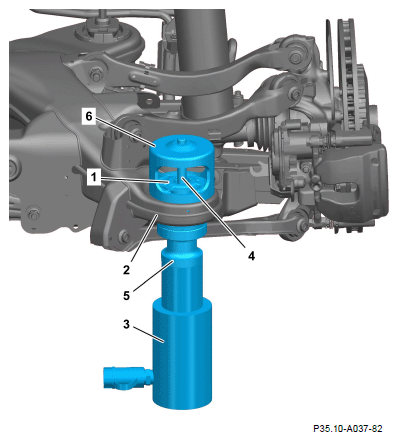

Remove
The following parts from the
extraction and insertion tool are required:
- Thrust piece (5) (223 589 01 43 01)
- Counterholder (6) (223 589 01 43 04)
- Spindle (4) (223 589 01 43 07)
- Mark installation position of front elastomer bearing (1) on rear axle carrier (2).
- Connect the
hollow cylinder (3) with
hydraulic hose to
hand pump.
- Position
hollow cylinder (3) with spindle (4) and thrust piece (5) on rear axle carrier (2), as shown.
- Screw counterholder (6) flush onto spindle (4).
- Secure the
hollow cylinder (3) with
security belt against falling down.
- Align pull-off device and press front elastomer bearing (1) out of rear axle carrier (2).
- Detach pulling device.

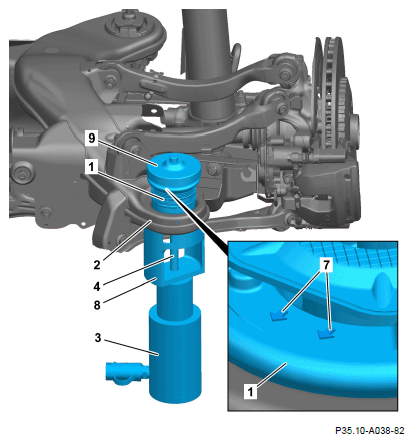

Install
The following parts from the
extraction and insertion tool are required:
- Thrust piece (9) (223 589 01 43 02)
- Counterholder (8) (223 589 01 43 05)
- Spindle (4) (223 589 01 43 07)
- Clean bearing seat on rear axle carrier (2).
- Coat front elastomer bearing (1) with insertion agent.
- Position front elastomer bearing (1) on rear axle carrier (2).
Align front elastomer bearing (1) with markings The two arrows (7) at the top on the front elastomer bearing (1) must point in the direction of travel.
- Connect the
hollow cylinder (3) with
hydraulic hose to
hand pump.
- Position
hollow cylinder (3) with spindle (4) and thrust piece (8) on rear axle carrier (2), as shown.
- Screw thrust piece (9) flush onto spindle (4).
- Secure the
hollow cylinder (3) with
security belt against falling down.
- Align insertion device and press front elastomer bearing (1) into rear axle carrier (2).
- Remove insertion device.
