Remove/Install Cover Of Rear Axle Differential - AR35.31-P-0555SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Drain rear axle differential oil. | AR35.31-P-0523S | |
| 2 | Remove rear axle differential (1). | AR35.31-P-0522SG | |
| 3 | Unscrew screws (2) and remove adapter (3). | *BA35.31-P-1007-02I | |
| 4 | Unscrew screws (4) and remove end cover (5). | Carefully detach end cover (5) using a screwdriver. Otherwise, the sealing surface may be damaged. Sealant, Loctite 5970, 50 ml |
*BR00.45-Z-1013-01A |
| *BA35.31-P-1001-02I | |||

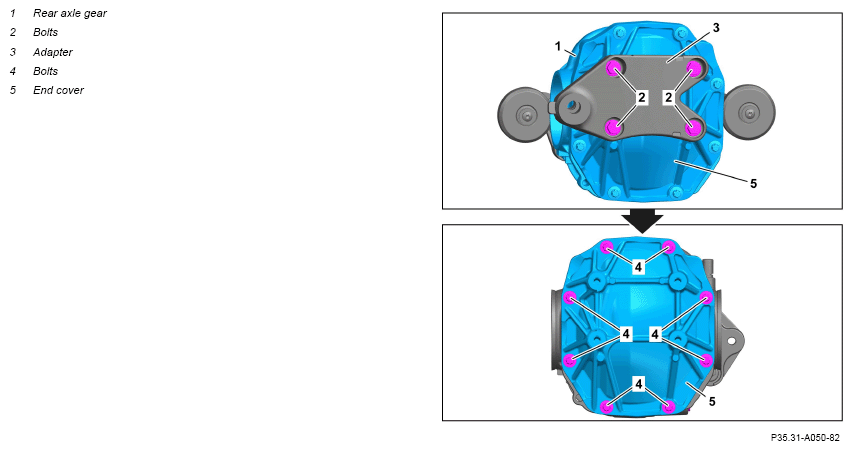

| Fig 1 | |||
| Clean | |||
| 5 | Clean sealing surfaces at rear axle differential (1) and at end cover (5). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Install in the reverse order. |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA35.31-P-1001-02I | Bolt, end cover to rear axle differential | Stage 1 | Nm | 30 |
| Stage 2 | ∠° | 45 | ||
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA35.31-P-1007-02I | Screw, adapter to end cover | Nm | 100 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
