Drain/Fill Rear Axle Gear Oil - AR35.31-P-0523S
Model 223
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Drain off | |||
| 1 | Lift vehicle with vehicle lift. | AR00.60-P-1006A | |

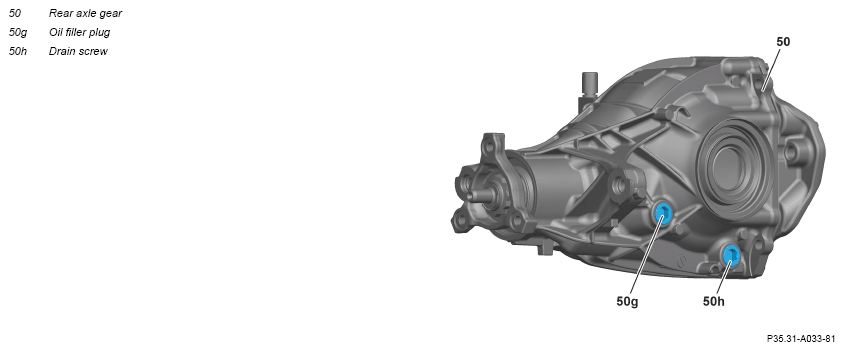

| 2 | Clean area surrounding oil filler screw (50g) and drain screw (50h). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Remove oil filler screw (50 g). | ||
| 4 | Remove drain screw (50h) and collect rear axle differential oil in suitable container. | with code Z07 (B7 armoring on special protection version) |
|
| The drain screw (50h) is located on the right side. | |||
| Clean | |||
| 5 | Clean threaded holes of oil filler screw (50g) and drain screw (50h) in rear axle differential (50) with cleaning spray. | Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A |
| Fill | |||

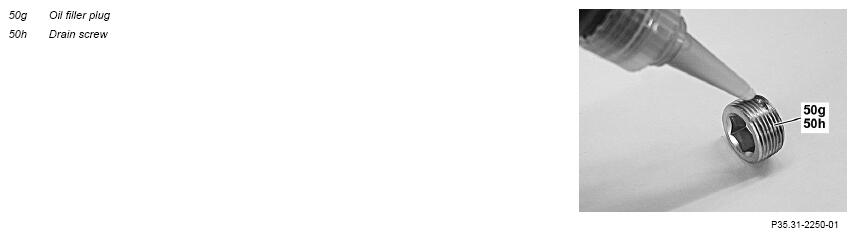

| 6 | Apply one drop of sealant to the lower third of the thread on the drain plug (50h). | Sealant, Omnifit 100H (50 g) |
*BR00.45-Z-1061-01A |
| 7 | Screw in and tighten drain screw (50h). | *BA35.31-P-1005-02I | |
| 8 | Pour rear axle differential oil into rear axle differential (50) using hand pump. | ||
| Differentiating characteristics of aluminum differential housings | GF35.31-P-0002-01A *BF35.31-P-1001-02I |
||
| Fig 1 | |||
| 9 | Apply a drop of sealant to the lower third of the thread on the oil filler screw (50g). | Sealant, Omnifit 100H (50 g) |
*BR00.45-Z-1061-01A |
| 10 | Screw in and tighten oil filler screw (50g). | *BA35.31-P-1004-02I | |
| 11 | Check rear axle differential (50) for leak tightness. | ||
| 12 | Lower vehicle with vehicle lift. | AR00.60-P-1006A |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA35.31-P-1004-02I | Filling screw on rear axle differential | Nm | 50 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA35.31-P-1005-02I | Drain screw on rear axle differential | Nm | 50 |
REAR AXLE DIFFERENTIAL
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BF35.31-P-1001-02I | Filling capacity | Rear Axle Differential ALU197 | Liter | 0, 9 |
| Rear Axle Differential ALU205 | Liter | 1, 0 | ||
| Rear Axle Differential GG205 | Liter | 1, 0 | ||
| Rear Axle Differential FE240 | Liter | 1, 5 | ||
| Specified gear oils - overview | BB00.40-P-0231-01A | |||
| Approved axle gear oils | BB00.40-P-0235A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
