Replace Radial Shaft Sealing Ring At Outer Right Front Axle Differential - AR33.30-P-0540S

Model 223 with engine 176, 256, 279, 656

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Remove right front axle shaft.		AR33.30-P-0620S
2	Clean working area around radial shaft sealing ring (1r).	Assembly cleaner	*BR00.45-Z-1028-04A

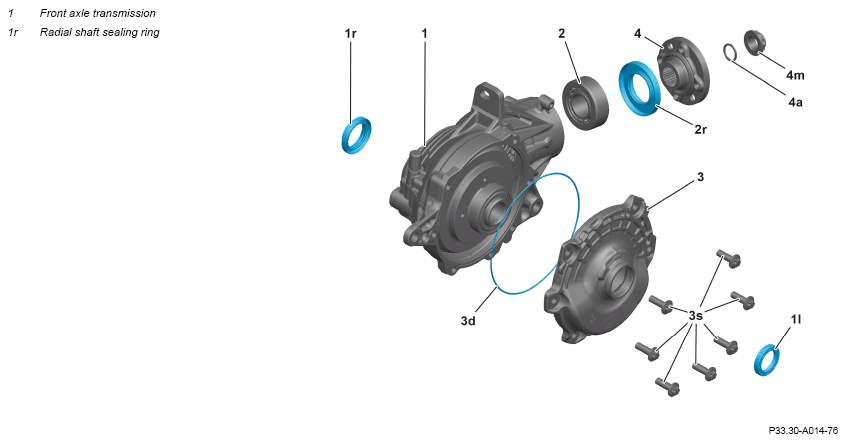

3	Remove radial shaft sealing ring (1r).	Do not damage the seat of the radial shaft sealing ring (1r). Otherwise, the front axle differential (1) will be leaky. Connect internal extractor and slide hammer puller to threaded rod of extraction tool. Impact extractor	Fig 2
		Internal extractor	Fig 1
		Extraction tool	Fig 3
4	Check seat of radial shaft sealing ring (1r) for damage.	If the seat of the radial shaft sealing ring (1r) is damaged, ↓ replace front axle differential (1). Model 223 with engine 176, 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0525S
		Model 223 with engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0525SB
		Model 223 with engine 279 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0525SVZ
	Install
5	Coat sealing lip of radial shaft sealing ring (1r) using universal hypoid gear oil.
	Universal hypoid gear oils (specification 235.7)	Replace radial shaft sealing ring (1r).	BB00.40-P-0235-07A
6	Drive radial shaft sealing ring (1r) into front axle differential (1) using drift.	Drift	Fig 4
7	Install right front axle shaft.		AR33.30-P-0620S
