Replace Deep-Groove Ball Bearing In Intermediate Shaft - AR33.30-P-0625-02S

Model 223

INTERMEDIATE SHAFT

Number	Designation				Model 223
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	478.5 mm	mm	-
			479.3 mm	mm	350, 2...350, 4
			504.3 mm	mm	-
			510.0 mm	mm	-

Fig 1: Identifying Pulling Arms (116 589 12 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller, Two-Arm (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Thrust Piece Set (711 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Drift (460 589 15 15 00)

Courtesy of MERCEDES-BENZ USA

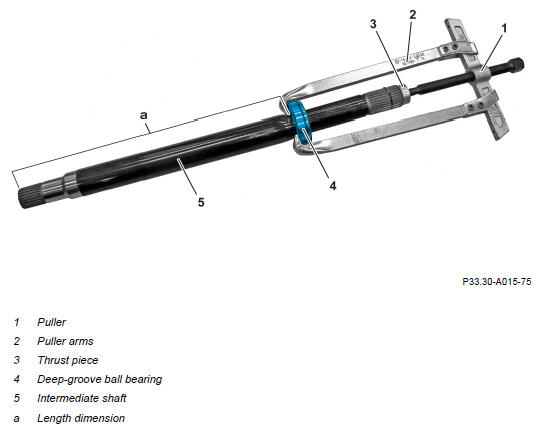

Position puller (1) with mounted puller arms (2) on intermediate shaft (5) and on deep-groove ball bearing (4).
Position thrust piece (3) between puller (1) and intermediate shaft (5).
Tighten puller (1) until deep-groove ball bearing (4) can be removed from intermediate shaft (5).
Clean bearing seat of intermediate shaft (5) using a clean rag and check for damage.
If the bearing seat is damaged,

↓

install a new intermediate shaft (5).
Mount deep-groove ball bearing (4) onto intermediate shaft (5) and press on using drift until length dimension (a) is reached.
Replace deep-groove ball bearing (4).

Pay attention to installation position.

Courtesy of MERCEDES-BENZ USA
Check that deep-groove ball bearing (4) is seated correctly; correct if necessary.
