Remove/Install Right Rear Seat Control Unit - AR91.29-P-1572S

Model 223

with code 223 (Electric backrest adjustment and head restraints)

Model 223

with code 224 (Individual rear seats)

Model 223

with code 453 (Rear reclining seat)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Remove right side trunk lining.	Model 223 with code 223 (Electric backrest adjustment and head restraints) with code Z07 (B7 armoring on special protection version) Model 223 with code 224 (Individual rear seats) with code Z07 (B7 armoring on special protection version) Model 223 with code 453 (Rear reclining seat) with code Z07 (B7 armoring on special protection version)	AR68.30-P-4800SG
		Model 223 with code 223 (Electric backrest adjustment and head restraints) except code Z07 (B7 armoring on special protection version) Model 223 with code 224 (Individual rear seats) except code Z07 (B7 armoring on special protection version) Model 223 with code 453 (Rear reclining seat) except code Z07 (B7 armoring on special protection version)	AR68.30-P-4800S

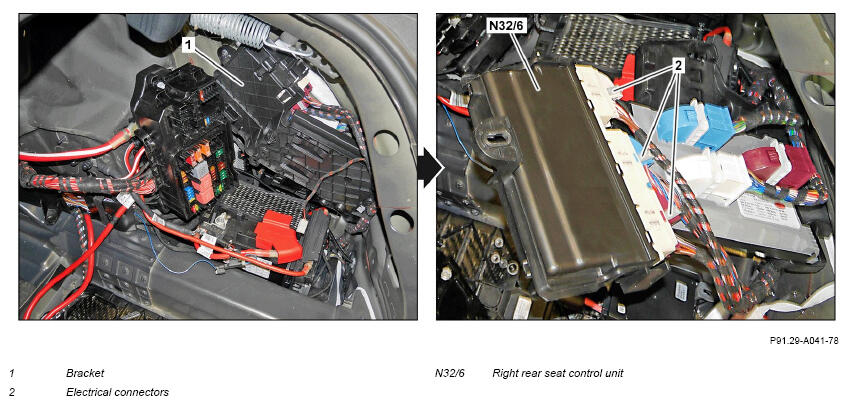

3	Remove holder (1) and place to one side with attached control units.
4	Disconnect electrical connectors (2).
5	Remove right rear seat control unit (N32/6).
6	Install in the reverse order.
7	Commission right rear seat control unit (N32/6).	When replacing right rear seat control unit (N32/6).
			AD00.00-P-2000-06FR
