Remove/Install Side Paneling In Trunk - AR68.30-P-4800SG

Model 223

with code Z07 (B7 armoring on special protection version)

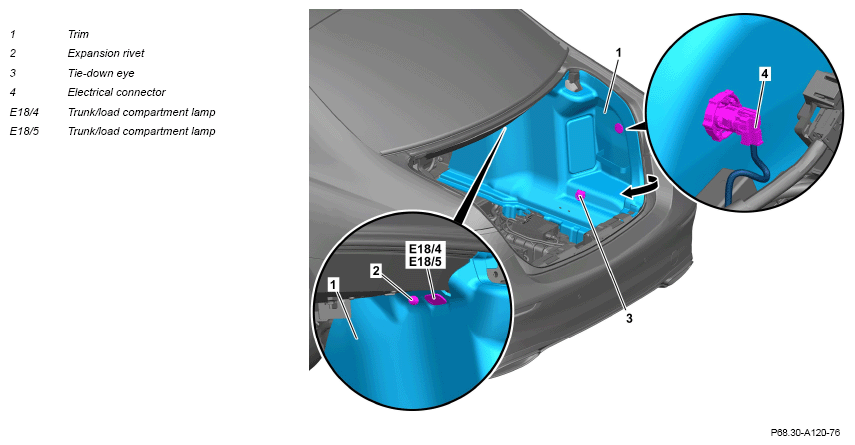

Shown on right trim (1) at side in trunk

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Open trunk lid.
2	Remove trims of battery of 12 V on-board electrical system in trunk.		AR54.10-P-0051-02SG
		Model 223 with engine 279 with code Z07 (B7 armoring on special protection version)
		Dismantling tool	Fig 1
3	Remove rear-end center-section trim.,		AR68.30-P-4786S
4	Unclip corresponding expansion rivet (2).	Dismantling tool	Fig 1
5	Remove corresponding tie-down eye (3).	Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
6	Pull trim (1) at rear slightly towards the inside (arrow).
7	Disconnect electrical connector (4).	Model 223 with code U35 (12 V socket in load area) with code Z07 (B7 armoring on special protection version) When removing right paneling (1).
8	Pull out trim (1) at trunk lid hinge.	Pay attention to electrical wiring harness of trunk/load compartment lamp (E18/5, E18/4).
9	Release and disconnect electrical connector of trunk/load compartment lamp (E18/4, E18/5).
10	Guide out trim (1).
11	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
