Remove/Install Side Paneling In Trunk - AR68.30-P-4800S
Model 223
except code Z07 (B7 armoring on special protection version)
Shown with code 308 (Refrigeration compartment in rear)

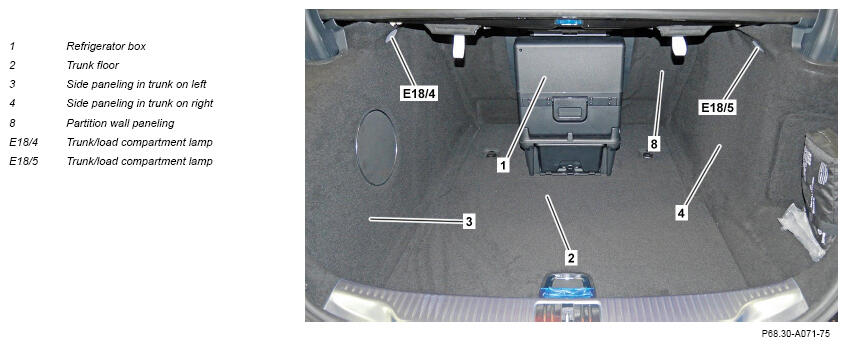

Shown on right side with code 942 (Load compartment/trunk package)
Shown on right side with code 942 (Load compartment/trunk package)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open trunk lid. | ||
| 2 | Remove refrigerator box (1) from trunk. | Model 223 with code 308 (Refrigerated compartment in rear passenger compartment) except code Z07 (B7 armoring on special protection version) |
|
| 3 | Remove trunk floor (2). | Model 223 except code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) |
|
| 4 | Remove spare wheel well trim. | AR68.30-P-4620S | |
| Model 223 except code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) |
|||
| 5 | Remove rear-end center-section trim. | AR68.30-P-4786S | |
| Model 223 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) |
|||
| 6 | Remove rear panel trim. | Model 223 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) |
|
| AR68.30-P-4750S | |||

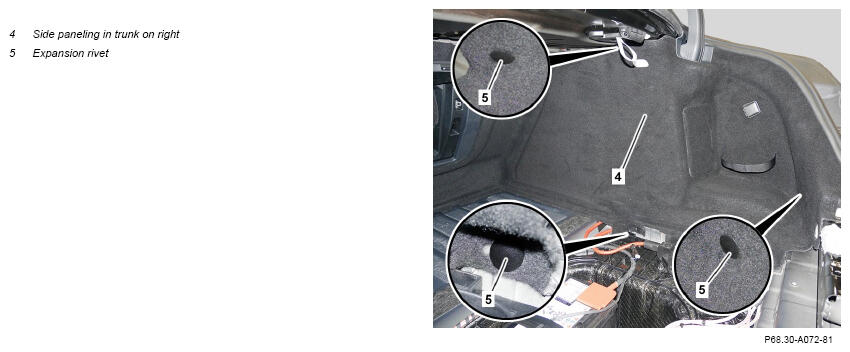

| 7 | Unclip expansion rivets (5). | Fig 1 | |
| 8 | Pull side trim in left trunk (3) and/or side trim in right trunk (4) at rear slightly towards the inside (arrow). | ||

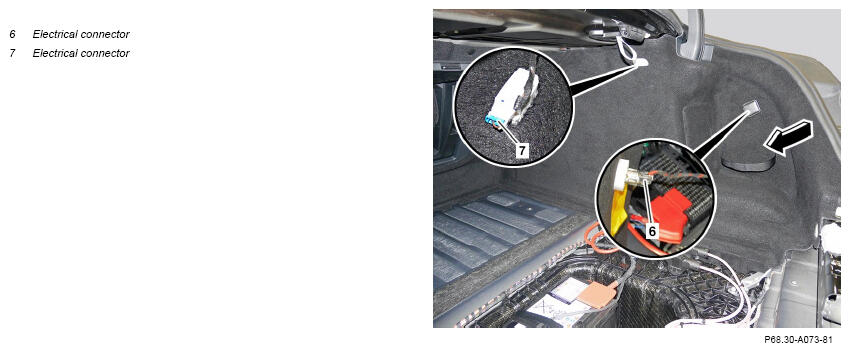

| 9 | Disconnect electrical connection (6). | Model 223 with code 942 (Load compartment/trunk package) except code Z07 (B7 armoring on special protection version) |
|
| 10 | Extend side trim in left trunk (3) and/or side trim in right trunk (4) at trunk lid hinge. | ||
| 11 | Disconnect electrical connector (7) of trunk/load compartment lamp (E18/4, E18/5). | ||
| 12 | Lift partition trim (8) and guide out side trim in left trunk (3) and/or side trim in right trunk (4). | Model 223 except code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) |
|
| 13 | Install in the reverse order. |
