Remove/Install Left Rear Seat Control Unit - AR91.29-P-1571S
Model 223
with code 223 (Electric backrest adjustment and head restraints)
Model 223
with code 224 (Individual rear seats)
Model 223
with code 453 (Rear reclining seat)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove left side trunk lining. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code Z07 (B7 armoring on special protection version) Model 223 with code 224 (Individual rear seats) with code Z07 (B7 armoring on special protection version) Model 223 with code 453 (Rear reclining seat) with code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800SG |
| Model 223 with code 223 (Electric backrest adjustment and head restraints) except code Z07 (B7 armoring on special protection version) Model 223 with code 224 (Individual rear seats) except code Z07 (B7 armoring on special protection version) Model 223 with code 453 (Rear reclining seat) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800S | ||
| 3 | Remove subwoofer in trunk. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 811 (High-End sound system) Model 223 with code 224 (Individual rear seats) with code 811 (High-End sound system) Model 223 with code 453 (Rear reclining seat) with code 811 (High-End sound system) |
|
| AR82.62-P-7841S | |||

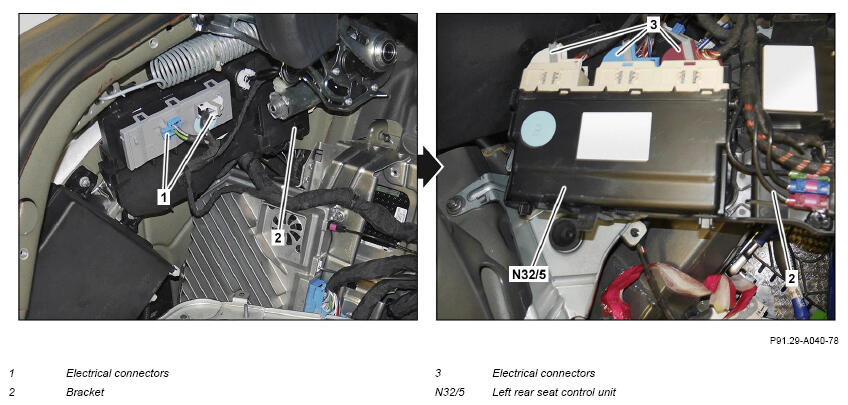

| 4 | Disconnect electrical connectors (1) from trunk lid control, control unit and remove associated wiring harness. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 881 (Remote boot-lid closing) Model 223 with code 224 (Individual rear seats) with code 881 (Remote boot-lid closing) Model 223 with code 453 (Rear reclining seat) with code 881 (Remote boot-lid closing) |
|
| 5 | Remove holder (2) and place to one side with attached control units. | ||
| 6 | Disconnect electrical connection (3). | ||
| 7 | Remove left rear seat control unit (N32/5). | ||
| 8 | Install in the reverse order. | ||
| 9 | Perform commissioning on left rear seat control unit (N32/5). | When replacing left rear seat control unit (N32/5). | |
| AD00.00-P-2000-06FR | |||
| Normalizing | |||
| 10 | Close trunk lid manually. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 881 (Remote boot-lid closing) Model 223 with code 224 (Individual rear seats) with code 881 (Remote boot-lid closing) Model 223 with code 453 (Rear reclining seat) with code 881 (Remote boot-lid closing) |
|
| 11 | Actuate driver trunk lid control button in driver door trim to "Open" position until the trunk lid reaches upper stop. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 881 (Remote boot-lid closing) Model 223 with code 224 (Individual rear seats) with code 881 (Remote boot-lid closing) Model 223 with code 453 (Rear reclining seat) with code 881 (Remote boot-lid closing) |
|
| 12 | Reactuate driver trunk lid control button in driver door trim for 4 s in "Open" position. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 881 (Remote boot-lid closing) Model 223 with code 224 (Individual rear seats) with code 881 (Remote boot-lid closing) Model 223 with code 453 (Rear reclining seat) with code 881 (Remote boot-lid closing) |
