Remove/Install Extinguishing Agent Line Under Right Engine Compartment - AR86.10-P-0132SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z21 (Fire extinguishing system)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center armor plate, front right armor plate and upper front right armor plate.		AR61.40-P-1001S
2	Remove right front diagonal strut.		AR61.10-P-5141S
3	Remove front right wheel and tire assembly.		AR40.10-P-1102A
4	Remove right front fender liner.		AR88.10-P-1301S
5	Remove atomizer nozzle bracket of right front fire-extinguishing system.		AR86.10-P-0135SG

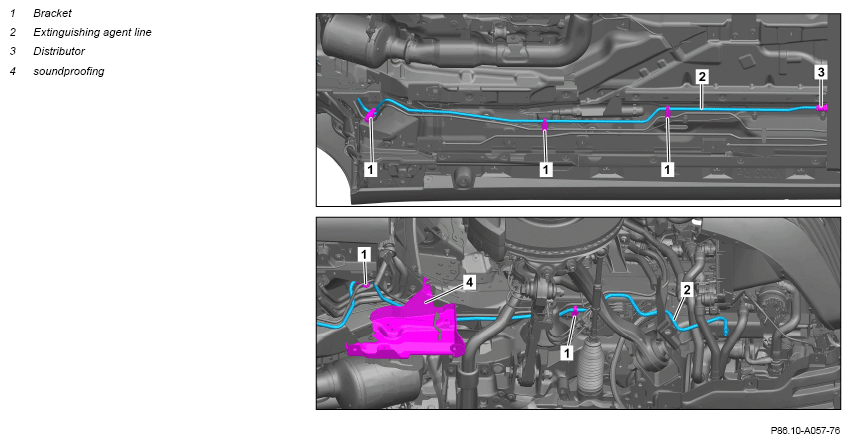

6	Expose extinguishing agent line (2) at brackets (1).
7	Remove union nut for extinguishing agent line (2) and carefully remove extinguishing agent line (2) from distributor (3).
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
		Threaded connections for fire extinguisher agent lines	*BA86.10-P-1018-01E
8	Remove soundproofing (4).
9	Thread out extinguishing agent line (2) toward rear.
10	Install in the reverse order.
