Remove/Install Extinguishing Agent Line In Left Engine Compartment - AR86.10-P-0129SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z21 (Fire extinguishing system)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center armor plate, front left armor plate, and top front left armor plate.		AR61.40-P-1001S
2	Remove left front diagonal strut.		AR61.10-P-5141S

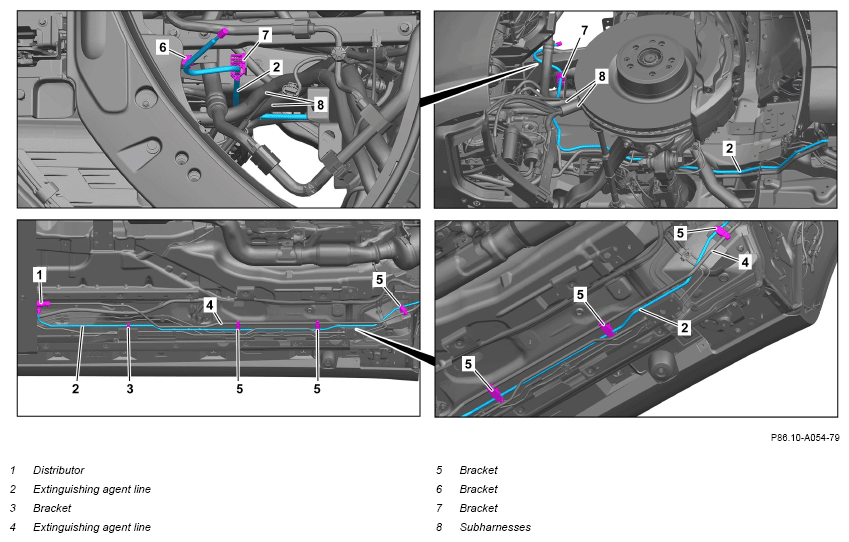

3	Expose extinguishing agent line (2) on holders (6, 7).
4	Unclip sub-harnesses (8) on body and expose.
5	Remove left front wheel and tire assembly.		AR40.10-P-1102A
6	Remove front left fender liner.		AR88.10-P-1301S
7	Expose extinguishing agent line (4) on holders (5).
8	Expose extinguishing agent line (2) on holders (3, 5).
9	Remove union nut for extinguishing agent line (2) and carefully remove extinguishing agent line (2) from distributor (1).
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
		Threaded connections for fire extinguisher agent lines	*BA86.10-P-1018-01E
10	Pull out extinguishing agent line (2) downward.
11	Install in the reverse order.
