Remove/Install Cooling System Fan Unit - AR20.40-P-5050SVZ
Engine 279 in model 223
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain coolant of low-temperature circuit. | AR09.41-P-6834SVZ | |
| 2 | Drain coolant of high-temperature circuit. | AR20.00-P-1142SVZ | |

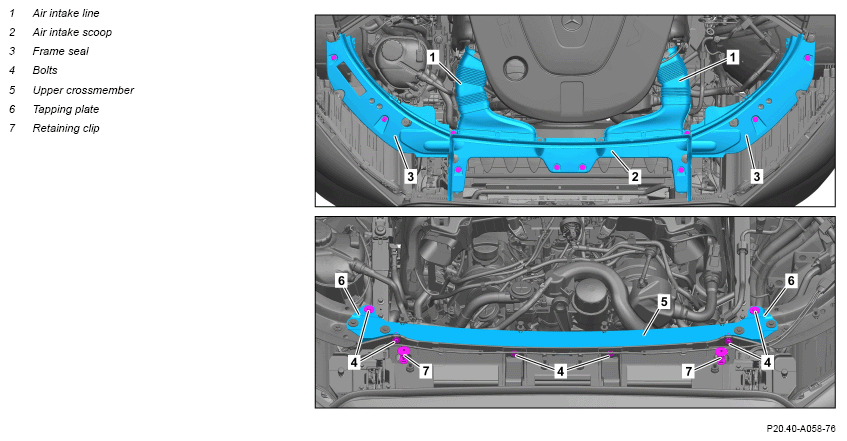

| 3 | Remove left and right air intake lines (1). | Fig 1 | |
| 4 | Remove air intake scoop (2). | Fig 1 | |
| 5 | Remove left and right sealing frames (3). | Fig 1 | |
| 6 | Unscrew screws (4) and remove upper crossmember (5) together with both threaded plates (6). | *BA62.30-P-1005-01G | |
| 7 | Remove retaining clips (7). | ||
| 8 | Unclip electrical wiring harness (8) from cooler unit. | Do not crush or kink electrical wiring harness (8) or subject it to tension. This will result in damage to the electrical wiring harness (8) and may impair its function. |
Fig 1 |

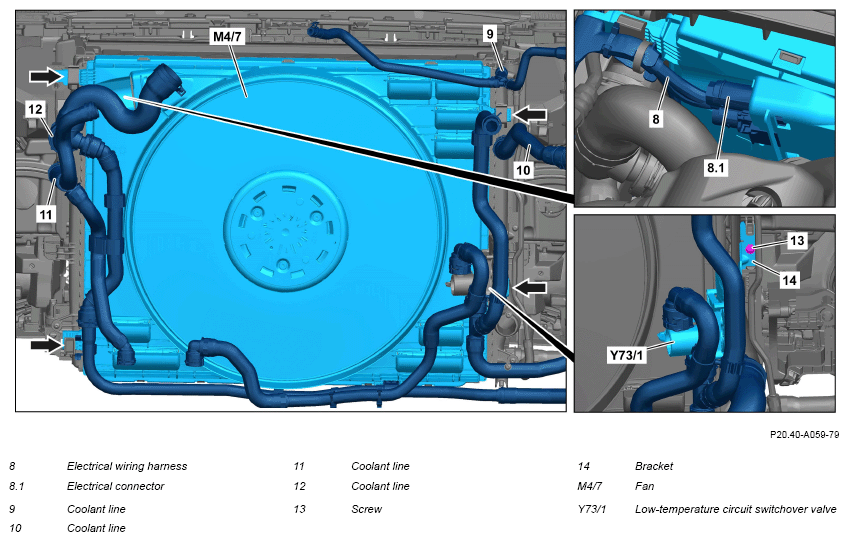

| 9 | Release and disconnect electrical connector (8.1) and place electrical wiring harness (8) to one side. | ||
| 10 | Remove coolant lines (9, 10, 11, 12) from cooler and seal openings with protective covers. | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| Fig 3 | |||
| 11 | Unscrew screw (13), unclip holder (14) from radiator support, and place low-temperature circuit switchover valve (Y73/1) to one side with coolant lines connected. | ||
| 12 | Unclip coolant line (12) from fan (M4/7). | ||
| 13 | Unclip fan (M4/7) upward from holders (arrows) and remove fan (M4/7) upward. | ||
| 14 | Install in the reverse order. |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA62.30-P-1005-01G | Screw, front module cross strut to crossmember | M6 | Nm | 8 |
