Remove/Install Hydraulic Cylinder Head Valve Clearance Compensating Elements - AR05.00-P-2011SVZ
Engine 279 in model 223
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

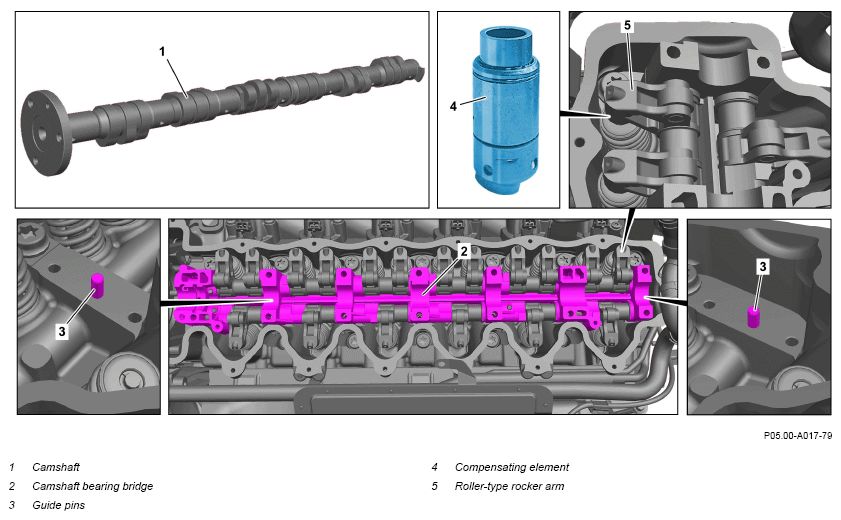

| 1 | Remove camshaft (1) of left cylinder bank. | AR05.20-P-6998SVZ | |
| 2 | Remove camshaft (1) of right cylinder bank. | AR05.20-P-6999SVZ | |
| 3 | Remove camshaft bearing bridges (2). | ||
| 4 | Mark compensating elements (4) relative to respective roller-type rocker arm (5). | Where compensating element (4) is reused. | |
| 5 | Press compensating elements (4) using drift ø 2 mm out of roller-type rocker arms (5). | Do not use a magnet. Slide surfaces of compensating elements (4) will otherwise become magnetized. The smallest of iron filings can as a result accumulate that lead to damage to the compensating elements (4) and cams. |
|
| 6 | Install in the reverse order. |
