Check Basic Position Of Camshafts - AR05.20-P-6010SVZ
Engine 279 in model 223
Shown on the right cylinder head
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||
| 1 | Remove right cylinder head cover. | AR01.20-P-5012SVZ | |
| 2 | Remove left cylinder head cover. | AR01.20-P-5013SVZ | |
| Check | |||
| 3 | Position crankshaft at 30° after ignition TDC at cylinder 1. | Do not turn engine opposite to the direction of engine rotation. The timing chain can skip otherwise and engine damage can occur. |
Fig 3 |

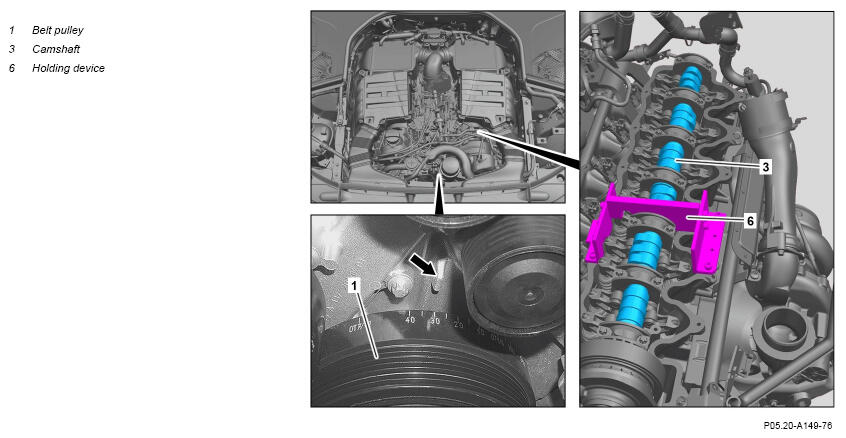

| 4 | Check basic position of camshafts (3). | Fig 2 | |
If basic position of camshafts (3) is incorrect: ↓ Set basic position of camshafts (3). |
Fig 1 | ||
| AR05.20-P-6020SVZ | |||
| Install | |||
| 5 | Install left cylinder head cover. | AR01.20-P-5013SVZ | |
| 6 | Install right cylinder head cover. | AR01.20-P-5012SVZ |
