Remove/Install Radiator Unit - AR20.20-P-3871SC
Engine 176 in model 223
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notes on handling refrigerant R134a | AH83.30-P-0003-01KOA | ||
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||
| 1 | Discharge air conditioning system. | AR83.30-P-1760S | |
| 2 | Drain the coolant for the 48 V on-board electrical system coolant circuit. | AR20.00-P-2014SC | |
| 3 | Remove fan unit. | AR20.40-P-5050SC | |

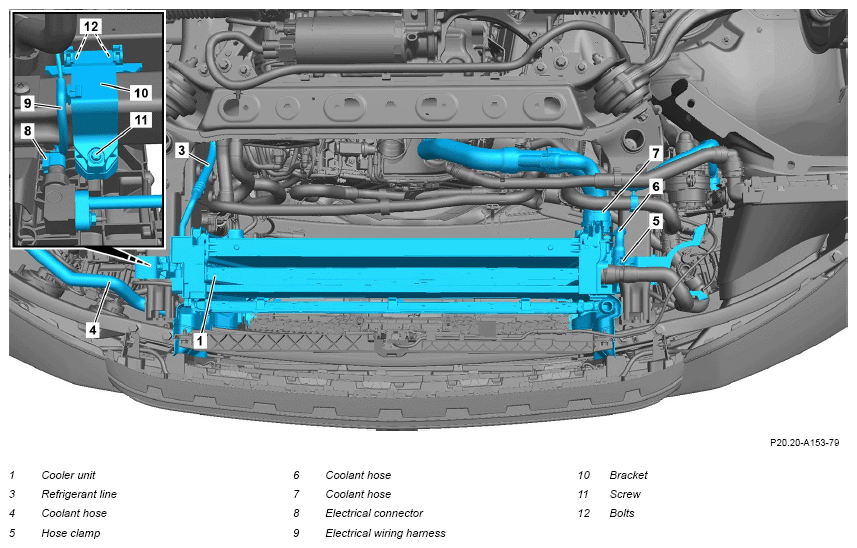

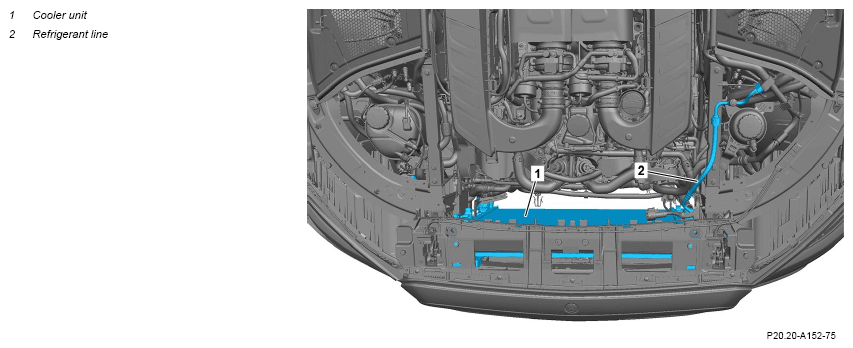

| 4 | Remove the refrigerant line (2) from the cooler unit (1), place it to one side and seal the openings using suitable stop plugs. | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| Fig 1 | |||
| Fig 3 | |||
| 5 | Remove the refrigerant line (3) from the cooler unit (1), place it to one side and seal the openings using suitable stop plugs. | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| Fig 1 | |||
| Fig 3 | |||
| 6 | Remove the coolant hose (4) from the cooler unit (1). | AR20.20-P-7441-01RQ | |
| 7 | Open the hose clamp (5) and remove the coolant hose (6) at the connecting point. | Fig 2 | |
| 8 | Remove the coolant hose (7) from the cooler unit (1). | AR20.20-P-7441-01RQ | |
| 9 | Release and disconnect the electrical connector (8) and remove the electrical wiring harness (9) | ||
| from the bracket (10) on the left and from the cooler unit (1). | |||
| 10 | Remove coolant pump (M43/1) | AR09.41-P-6931SC | |
| 11 | Secure the cooler unit (1) by suitable means against falling down. | ||
| 12 | Unscrew screws (11) at left and right. | ||
| 13 | Unscrew screws (12) at left and right. | ||
| 14 | Remove the brackets (10) on the left and right. | ||
| 15 | Remove the cooler unit (1) by moving it downward. | Do not tilt cooler unit (1) or hit it against other parts. Otherwise leaks and damage can occur. |
|
| 16 | Disassemble the cooler unit (1). | If necessary. | AR20.20-P-3865-14SC |
| 17 | Install in the reverse order. |
