Disassemble/Assemble Cooler Unit - AR20.20-P-3865-14SC

Engine 176 in model 223

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA

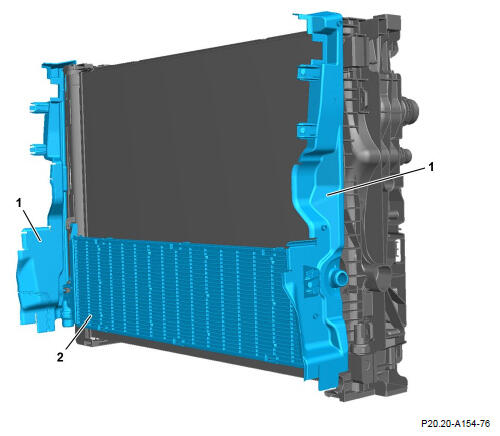

1. Remove air duct segments (1) at cooler unit.
2. Release coolant radiator (2) of 48V on-board electrical system coolant circuit at engagements and remove.

   Courtesy of MERCEDES-BENZ USA

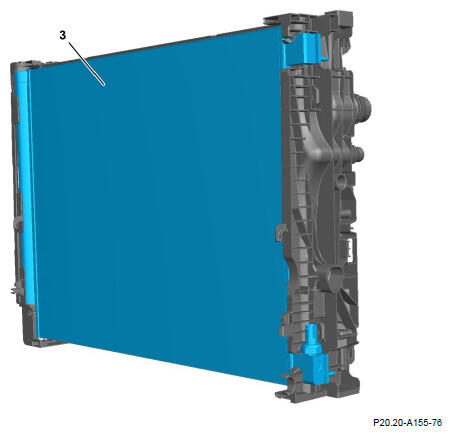

3. Unclip condenser (3) at cooler unit and remove.

   Courtesy of MERCEDES-BENZ USA

4. Remove coolant line (4).

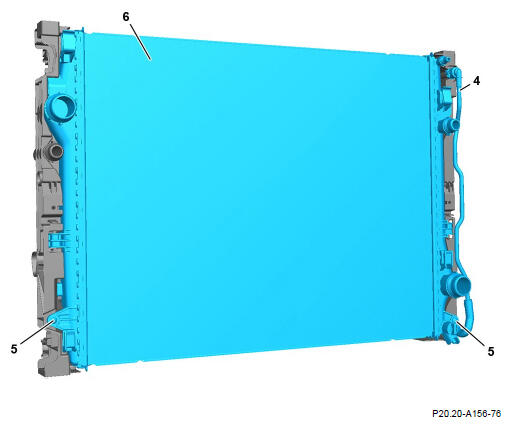

5. Remove bolts (5).
6. Remove coolant radiator (6) of engine cooling circuit.

   Courtesy of MERCEDES-BENZ USA

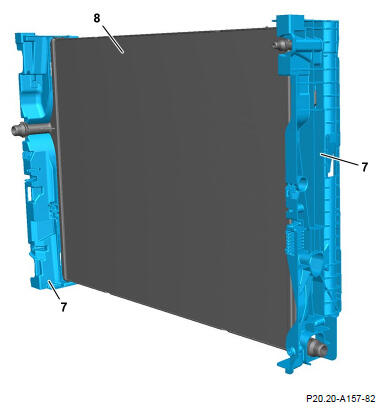

7. Remove supporting frames (7) from coolant radiator (8) of low-temperature circuit.
8. Assemble in the reverse order.
