Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610SG

Model 223

with code Z07 (B7 armoring on special protection version)

except code B06 (Silver brake calipers)

except code B07 (AMG - ceramic brake system)

except code U70 (red-painted brake callipers)

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove cover over brake fluid reservoir.
2	Clean area around cap of brake fluid reservoir.	Assembly cleaner	*BR00.45-Z-1028-04A
3	Remove cap of brake fluid reservoir and suction off some brake fluid.	This prevents the brake fluid reservoir from overflowing when the brake pistons are pushed back.
4	Remove front wheels.		AR40.10-P-1102A

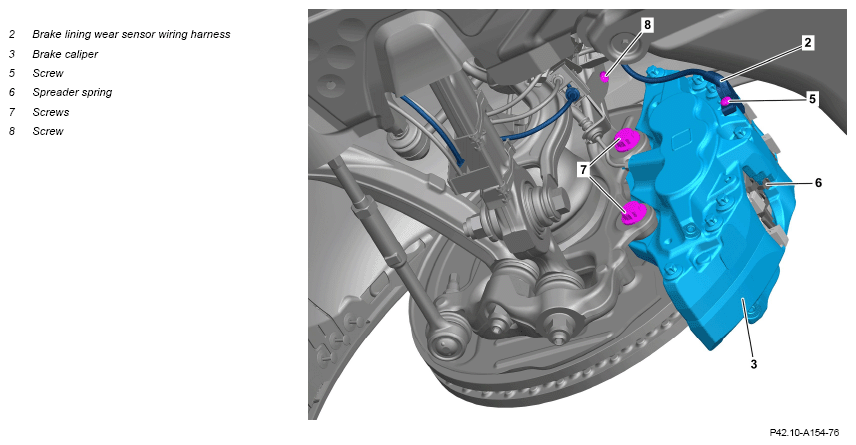

5	Disconnect brake lining wear sensor wiring harness (2) from brake lining wear sensor.	If the brake linings (1) on the right side of the vehicle are removed.
6	Unscrew screw (5) of brake lining wear sensor wiring harness (2).	If the brake linings (1) on the right side of the vehicle are removed.
		Model 223 (except 223.182) with code Z07 (B7 armoring on special protection version) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) Bolt, brake wear sensor to brake caliper	*BA42.10-P-1004-10CA

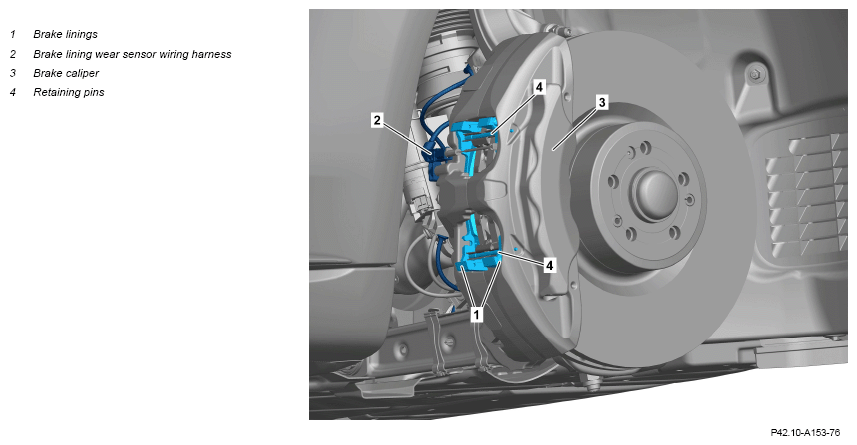

7	Hammer out retaining pins (4) with punch.	Drive in retaining pins (4) up to the end stop. Make sure that the spreader spring (6) is seated correctly.
8	Remove screw (8) of brake hose holder.	Screw, bracket for brake hose to strut	*BA42.10-P-1006-04R
9	Unscrew brake hose at brake caliper (3).		AR42.10-P-0026SG
10	Remove screws (7).	For loosening and tightening the screw (7), use tools that are suitable for torques over 400 Nm. Replace screws (7).
		Model 223 (except 223.182) with code Z07 (B7 armoring on special protection version) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) Bolt, brake caliper to steering knuckle	*BA42.10-P-1001-10CA
11	Remove brake caliper (3) and secure to vehicle free of tension.
12	Remove brake linings (1) with spreader spring (6) from brake caliper (3).	Do not apply brake paste or lubricants to brake linings (1) and brake calipers (3). Otherwise malfunctions will occur. Install only sets of brake linings (1) approved by Mercedes-Benz. Note installation position of brake linings (1). Press out seized brake linings (1) using a lever.
		Lever	Fig 3
13	Pull brake lining wear sensor out of backing plate of brake lining (1).	When replacing brake lining (1) or right front brake lining wear sensor.
	Check
14	Check condition of spreader spring (6).	If there is a problem, ↓ replace spreader spring (6).
15	Check brake linings (1) for wear and condition.
		If there is a problem, ↓ replace brake linings (1) in sets.	AP42.10-P-4252HH
16	Check condition of brake disk.
		If there is a problem, ↓ replace brake disks and brake linings (1) in sets.	AP42.10-P-4256A
			AR42.10-P-0240S
17	Check brake caliper (3) for damage.	If there is a problem, ↓ replace brake caliper (3).
			AR42.10-P-0070S
	Clean
18	Clean contact surfaces of brake linings (1) at brake caliper (3).	Do not use sharp-edged or pointed objects. Otherwise brake caliper (3) and dust boot at brake piston may be damaged.
		Assembly cleaner	*BR00.45-Z-1028-04A
19	Press back brake pistons all the way using pusher tool.	Secure remaining brake pistons to prevent them slipping out.
		Wedge	Fig 2
		Resetting device If one or several brake pistons are sluggish, ↓ replace brake caliper (3).	Fig 1
			AR42.10-P-0070S
20	Install in the reverse order.
21	Bleed brake system.		AR42.10-P-0010S
22	Perform brake test on test stand.
			AP42.00-P-4290BS

Fig 1: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wedge (601 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Lever (123 589 13 33 00)

Courtesy of MERCEDES-BENZ USA
