Remove/Install Front Door Side Window - AR67.30-P-0008SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from pinching or crushing hands and feet when working on windows. | Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes. | AS67.00-Z-0003-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | |
| Remove | |||
| 1.1 | Remove corresponding window lifter at front door. | Model 223 with code Z07 (B7 armoring on special protection version) with code Z11 (Left front power window with special protection) Model 223 with code Z07 (B7 armoring on special protection version) with code Z12 (Right front power window with special protection) |
AR67.39-P-0013SG |
| 1.2 | Remove corresponding holder of side window (1) at front door. | Model 223 with code Z07 (B7 armoring on special protection version) except code Z11 (Left front power window with special protection) except code Z12 (Right front power window with special protection) |
AR67.39-P-0014SG |

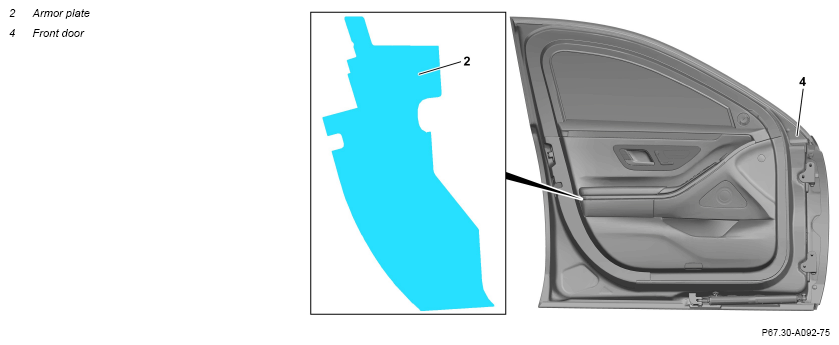

| 2 | Remove armor plate (2). | ||

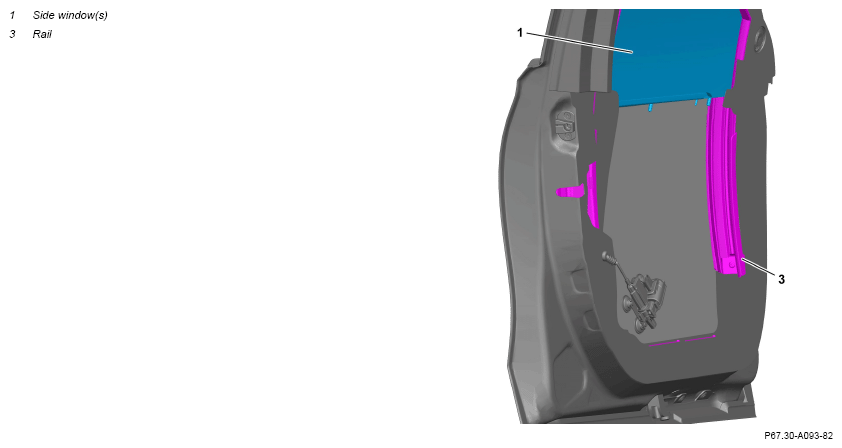

| 3 | Pull window guide seal out of rail (3) and push to side. | ||
| 4 | Unscrew screws and remove rail (3). | ||
| 5 | Remove additional support for securing side window (1). | ||
| 6 | Release collet and carefully lower side window | ||
| 7 | Remove side window (1) from front door (4). | ||
| Install | |||
| 8 | Replace front door window guide seal. | AR72.10-P-0010SG | |
| 9 | Retract side window (1) into front door (4). | ||
| 10 | Retract side window (1) into window guide seal and lift all the way to top. | ||
| 11 | Use collet to secure side window (1) against falling down. | Fig 1 | |
| 12 | Use suitable support to secure side window (1) against falling down from below in addition. | ||
| 13 | Install armor plate (2). | ||
| 14 | Insert rail (3) and screw in screws. | ||
| 15.1 | Install corresponding window lifter on front door. | Model 223 with code Z07 (B7 armoring on special protection version) with code Z11 (Left front power window with special protection) Model 223 with code Z07 (B7 armoring on special protection version) with code Z12 (Right front power window with special protection) |
AR67.39-P-0013SG |
| 15.2 | Install corresponding holder of side window (1) on front door. | Model 223 with code Z07 (B7 armoring on special protection version) except code Z11 (Left front power window with special protection) except code Z12 (Right front power window with special protection) |
AR67.39-P-0014SG |
