Remove/Install Holder For Side Window On Front Door - AR67.39-P-0014SG

Model 223

with code Z07 (B7 armoring on special protection version)

except code Z11 (Left front power window with special protection)

except code Z12 (Right front power window with special protection)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  from pinching or crushing hands and feet when working on windows.	Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes.	AS67.00-Z-0003-01A
Notice	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Remove
1	Remove corresponding front door module.		AR72.10-P-0900SGA
2	Use collet to secure side window against falling down.	Clamping pliers	Fig 1
3	Use suitable pen to make three markings on top outer side window on window guide seal.	Side window must be immersed 5 mm in window guide seal.
4	Remove nuts (2).
5	Remove armor plate (3).

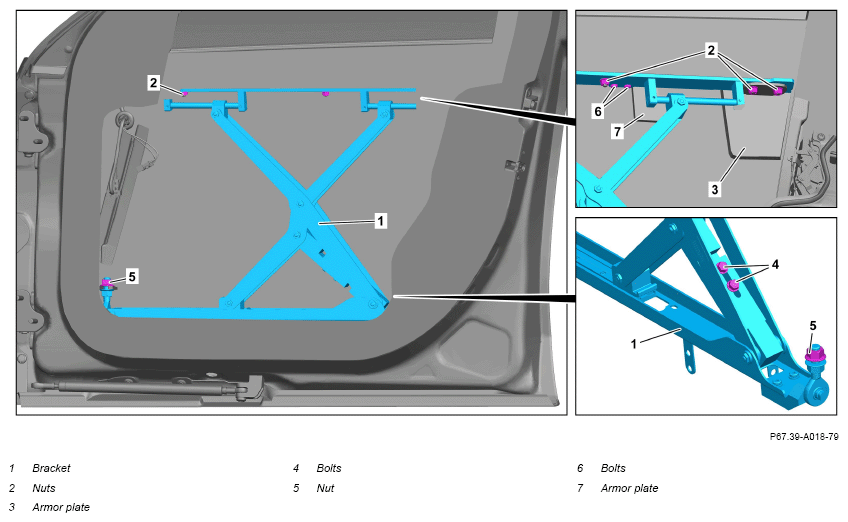

6	Release screws (4) and lower holder (1) as far as possible. While doing so, secure side window against falling down with the aid of two helpers.	As the side window is extremely heavy, it must be held by two helpers.
		Nuts (5) must still be accessible. If side window sinks, Lift side window and readjust collet. ↓ Clamping pliers	Fig 1
7	Loosen nuts (5).
8	Remove bracket (1).
9	Secure side window from below against falling down using suitable support.
10	Unscrew screws (6) and remove armor plate (7) from holder (1).	If bracket (1) is replaced.
	Install
11	Position armor plate (7) on holder (1) and screw in screws (6).	If holder (1) was replaced. Screw, guard plate to power window/holder	*BA72.10-P-1020-01BA
12	Remove additional support for side window.
13	Install bracket (1).
14	Slightly tighten nuts (5).
15	Move holder (1) upward up to lower edge of side window and tighten screws (4) slightly up to contact surface.	When moving holder (1) upward, ensure that threaded pins of side window and bores on holder (1) match. Aid of helper required.
16	Center holder (1) on side window in longitudinal direction.	Holder (1) must not come into contact with window guides. Otherwise the window guides may be damaged.
17	Position armor plate (3) in installation position and position nuts (2).
18	Tighten nuts (2).	Nut, side window to power window/holder	*BA72.10-P-1019-01BA
19	Tighten screws (4).	Pay attention to the three markings on side window. Screw, lock to holder	*BA72.10-P-1021-01BA
20	Tighten nuts (5).	Nut, power window/holder to front door	*BA72.10-P-1018-01BA
21	Remove collet.
22	Check markings on side window in relation to window guide seal.	If the markings do not match, Adjust height of side window via nuts (5).
		Nut, power window/holder to front door	*BA72.10-P-1018-01BA
23	Spray nuts (5) and threads with wax.	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
24	Install front door module.		AR72.10-P-0900SGA

Fig 1: Identifying Clamping Pliers (220 589 04 31 00)

Courtesy of MERCEDES-BENZ USA
