Remove/Install Expansion Reservoir Of Hydraulic System For Power Window On Rear Door - AR67.39-P-4404SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z13 (Left rear power window with special protection)

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z14 (Right rear power window with special protection)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Remove/install
1	Remove rear door trim.	Only install front door trim after bleeding the window lifter hydraulic system.	AR72.12-P-1011S
2	Release pressure in pressure reservoir for hydraulic power window assembly in front door.		AR67.39-P-0012-01SG

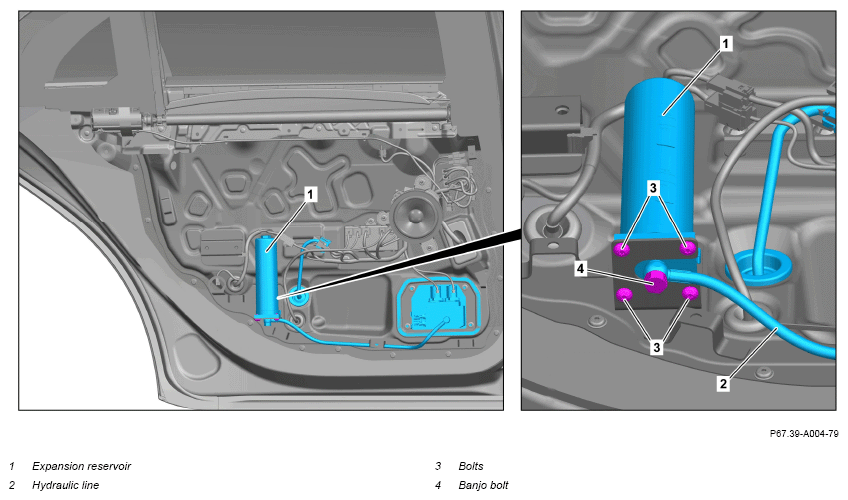

3	Loosen banjo bolt (4).	Collect escaping oil in a suitable vessel.
4	Remove screws (3).
5	Remove banjo bolt (4), remove hydraulic line (2), drain and collect oil from expansion reservoir (1).	Tighten banjo bolt (4) slightly by hand Replace seals of hydraulic line (2).
		Collect escaping oil in a suitable vessel.
6	Remove expansion reservoir (1).
7	Install in the reverse order.
8	Bleed window lifter hydraulic system.		AR67.39-P-0013-02SG
	Hydraulic fluids (Specification 345.0)		BB00.40-P-0345-00A
