Remove/Install Rear Door Liner - AR72.12-P-1011S
Model 223

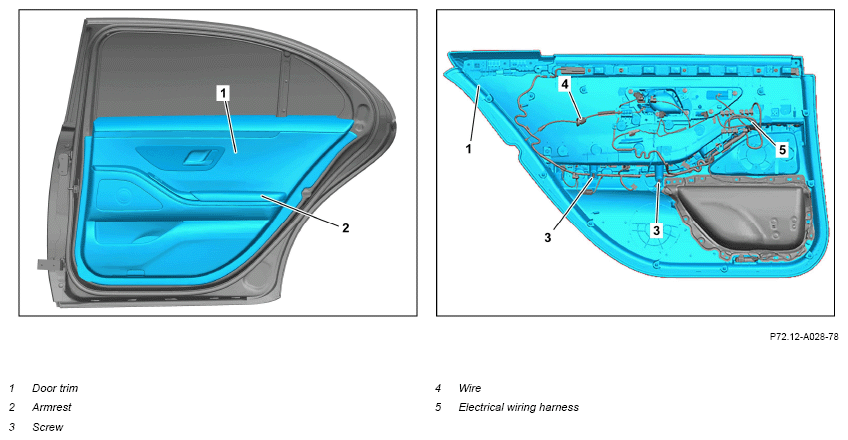

Shown on model 223 except code Z07 (B7 armoring for special protection version) and with code 811 (High-end sound system) on right rear door

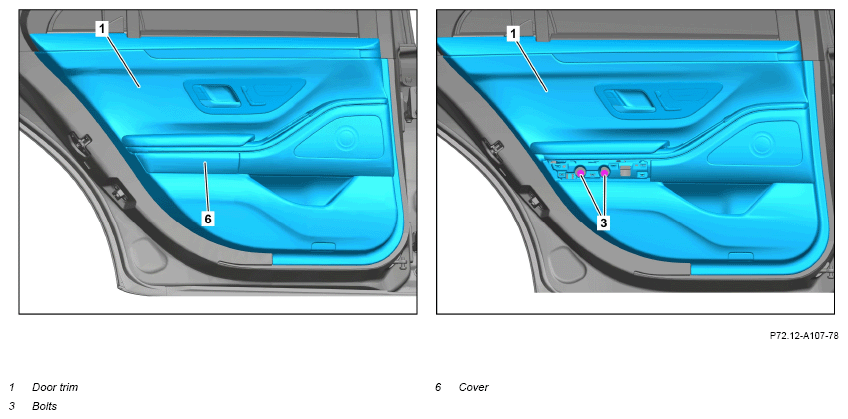

Shown on model 223 with code Z07 (B7 armoring for special protection version) on left rear door
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | Model 223 with code Z07 (B7 armoring on special protection version) |
AH67.00-P-0003-01FB |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove the cover (6). | Model 223 with code Z07 (B7 armoring on special protection version) |
|
| Fig 1 | |||
| 3 | Remove armrest (2). | AR72.12-P-1020S | |
| Model 223 except code Z07 (B7 armoring on special protection version) |
|||
| 4 | Remove screws (3). | ||
| 5 | Starting from the bottom, unclip door trim (1) and remove from sealing rail. | Do not subject the entire width of the door trim (1) in the area above the door handle to tension and compression. Otherwise, the ambient lighting might be damaged. |
|
Ensure that the retaining clips are seated correctly on the door trim (1). They will be damaged otherwise. |
|||
| Fig 1 | |||
| 6 | Lift door trim (1) until electrical wiring harness (5) and wire (4) can be accessed. | ||
| 7 | Detach wire (4) of inside door opener. | ||
| 8 | Disconnect electrical wiring harness (5) from rear door control unit. | ||
| 9 | Remove door trim (1). | ||
| Check | |||
| 10 | Check retaining clips of the door trim (1) for damage. | If there is a problem: ↓ replace corresponding retaining clip. |
|
| 11 | Install in the reverse order. |
