Remove/Install Rear Trim Strip On Window Frame Of Front Door - AR72.10-P-0001SGA
Model 223
with code Z07 (B7 armoring on special protection version)
except code Z11 (Left front power window with special protection)
except code Z12 (Right front power window with special protection)
| Remove/install | |||
| 1 | Remove corresponding front door side window. | AR67.30-P-0008SG | |
| 2 | Remove lower trim strip on window frame of front door. | AR72.10-P-1713S | |

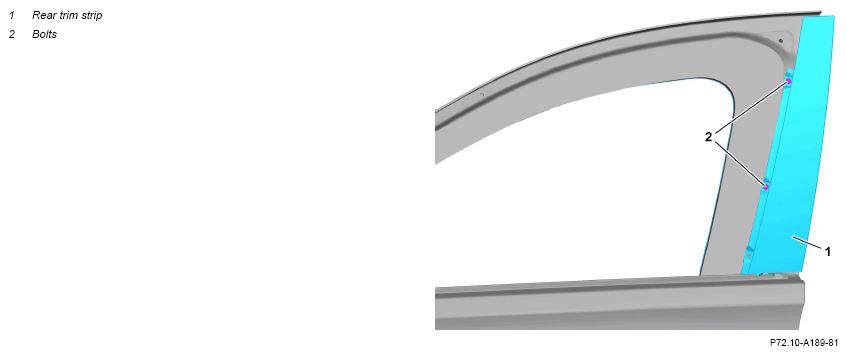

| 3 | Remove screws (2). | ||
| 4 | Remove rear trim strip (1). | ||
| 5 | Install in the reverse order. |
