Remove/Install Rear Trim Strip On Window Frame Of Rear Door - AR72.12-P-1714S

Model 223.0/1

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Shown with code 297 (Electric roller sun blinds in left and right rear doors)

	Remove/install
1	Lower side window completely.
2	Remove door trim.		AR72.12-P-1011S
3	Remove window frame lining.		AR72.12-P-0008S
4	Remove roller sunblind.	Model 223.0/1 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version)
			AR68.50-P-3402S

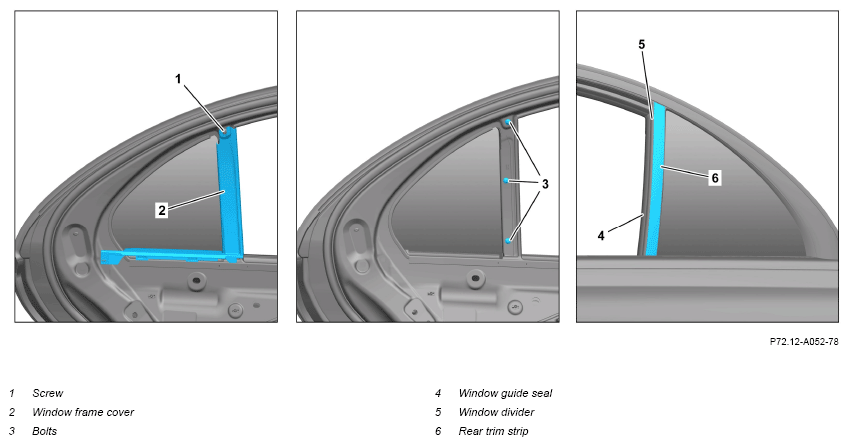

5	Remove screw (1) and take off window frame cover (2).	Model 223.0/1 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version)
6	Remove screws (3).	Model 223.0/1 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version)
		Only two screws (3) are installed.
7	Release window guide seal (4) in area of window divider (5).	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
8	Remove window divider (5) with rear trim strip (6).	Carefully remove window divider (5) from window channel. The window divider (5) may otherwise be damaged.
		Slide rear trim strip (6) downward, swivel to side, and remove from window channel.
9	Unclip rear trim strip (6) from window divider (5).
10	Install in the reverse order.
