Remove/Install Roller Sun Blind Of Rear Door - AR68.50-P-3402S
Model 223
with code 297 (Electric roller sun blind in left and right rear door)
Shown on model 223.1 except code Z07 (B7 Armoring for special protection version) on the left rear door
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | Model 223 with code 297 (Electric roller sun blind in left and right rear door) with code Z07 (B7 armoring on special protection version) |
AH67.00-P-0003-01FB |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove corresponding window frame lining. | AR72.12-P-0008S | |
| Model 223.0/1 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version) |
|||
| Model 223 with code 297 (Electric roller sun blind in left and right rear door) with code Z07 (B7 armoring on special protection version) |
AR72.12-P-0008SG | ||

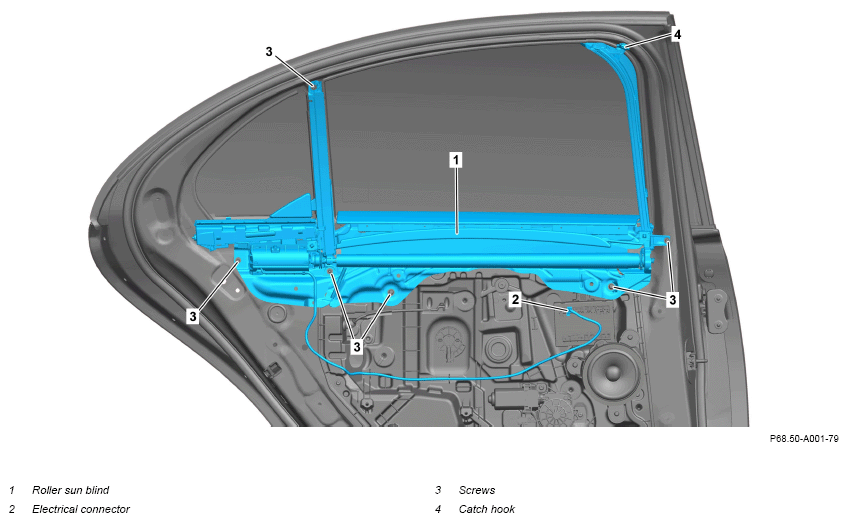

| 2 | Disconnect electrical connection (2). | ||
| 3 | Remove screws (3). | with code 297 (Electric roller sun blind in left and right rear door) with code Z07 (B7 armoring on special protection version) An additional screw (3) is installed in each of the lower and front upper areas. |
|
| 4.1 | Release catch hook (4) and remove roller sunblind (1). | Model 223.0/1 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version) |
|
| 4.2 | Remove roller sunblind (1). | Model 223 with code 297 (Electric roller sun blind in left and right rear door) with code Z07 (B7 armoring on special protection version) |
|
| 5 | Install in the reverse order. |
