Remove/Install Rear Door Window Guide Seal - AR72.12-P-0004SM

Model 223.9

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Lower side window completely.
2	Remove rear door window frame lining.		AR72.12-P-0008S
3	Remove roller sunblind.	Model 223.9 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version)
			AR68.50-P-3402S
4	Remove front trim strip from window frame.		AR72.12-P-1713S
5	Remove rear trim strip from window frame.		AR72.12-P-1714SM
6	Remove upper trim strip from window frame.		AR72.12-P-1711S

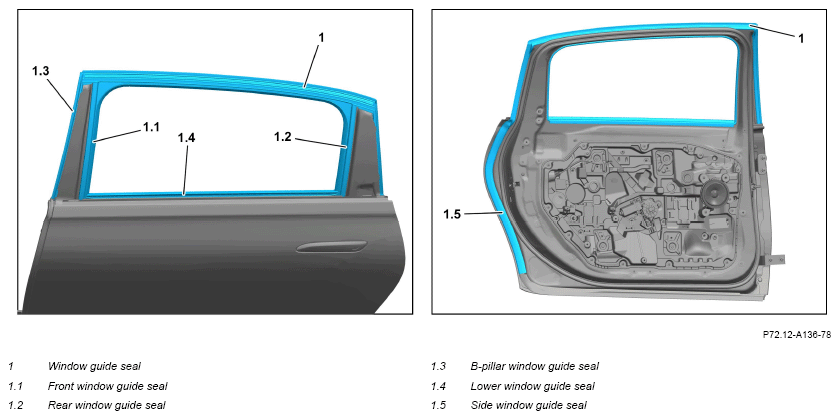

7	Unclip side window guide seal (1.5).	Long wedge	Fig 1
8	Unclip lower window guide seal (1.4).	Long wedge	Fig 1
9	Remove B-pillar window guide seal (1.3) from front trim strip.
10	Remove front window guide seal (1.1) from area of front trim strip.
11	Remove rear window guide seal (1.2) from area of trim strip and remove window guide seal (1).
	Install
12	Wet window guide seal (1) in assembly area of window frame with lubricant.	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
13	Insert window guide seal (1) at top of window frame.	Ensure that window guide seal (1) is seated correctly.
14	Wet rear window guide seal (1.2) in assembly area with lubricant.	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
15	Slide rear window guide seal (1.2) downward into guide rail.
16	Pull rear window guide seal (1.2) back up until it reaches the correct installation position.
17	Install rear window guide seal (1.2).	Ensure that rear window guide seal (1.2) is seated correctly.
18	Wet bottom window guide seal (1.4) with lubricant.	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
19	Install bottom window guide seal (1.4)
20	Wet B-pillar window guide seal (1.3) in assembly area with lubricant.	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
21	Install B-pillar window guide seal (1.3).	Ensure that B-pillar window guide seal (1.3) is seated correctly.
22	Wet front window guide seal (1.1) with lubricant.	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
23	Slide front window guide seal (1.1) downward into guide rail.
24	Pull front window guide seal (1.1) back up until it reaches the correct installation position.
25	Install front window guide seal (1.1).	Ensure that front window guide seal (1.1) is seated correctly.
26	Install side window guide seal (1.5).	Ensure side window guide seal (1.5) is seated correctly.
27	Install upper trim strip in window frame.		AR72.12-P-1711S
28	Install front trim strip on window frame.		AR72.12-P-1713S
29	Install rear trim strip on window frame.		AR72.12-P-1714SM
30	Install roller sunblind.	Model 223.9 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version)
			AR68.50-P-3402S
31	Install rear door window frame lining.		AR72.12-P-0008S
32	Close side window.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
