Remove/Install Front Trim Strip On Window Frame Of Rear Door - AR72.12-P-1713SGA
Model 223
with code Z07 (B7 armoring on special protection version)
except code Z13 (Left rear power window with special protection)
except code Z14 (Right rear power window with special protection)
| Remove/install | |||

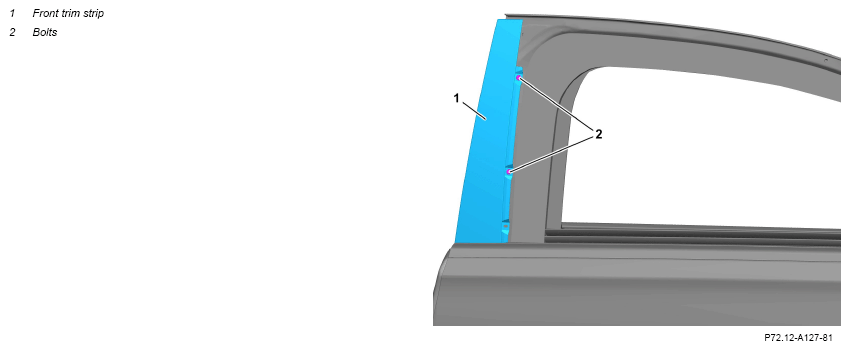

| 1 | Remove corresponding rear door side window. | AR67.30-P-0006SG | |
| 2 | Remove lower trim strip at window frame of rear door. | AR72.12-P-1712S | |
| 3 | Remove screws (2). | ||
| 4 | Remove front trim strip (1). | ||
| 5 | Install in the reverse order. |
