Remove/Install Lower Trim Strip On Window Frame Of Rear Door - AR72.12-P-1712S
Model 223
| Remove/install | |||
| 1 | Fully lower side window. | Model 223 except code Z07 (B7 armoring on special protection version) |
|
| 2 | Position tape under both ends of lower trim strip (1) and affix to door paneling. | Adhesive strips protects painting. Paint can otherwise be damaged during removal of lower trim strip (1). |
|
| 3 | Unclip lower trim strip (1). | Carefully lift lower trim strip (1) out of fold on door paneling. Otherwise, the lower trim strip (1) may bend and must be replaced. |
|
with code Z07 (B7 armoring on special protection version) |
|||
| Despite all caution, the lower trim strip (1) can become bent during unclipping and should be replaced if this happens. | |||
| Lubricant, rubber assembly 1 L | *BR00.45-Z-1010-06A | ||

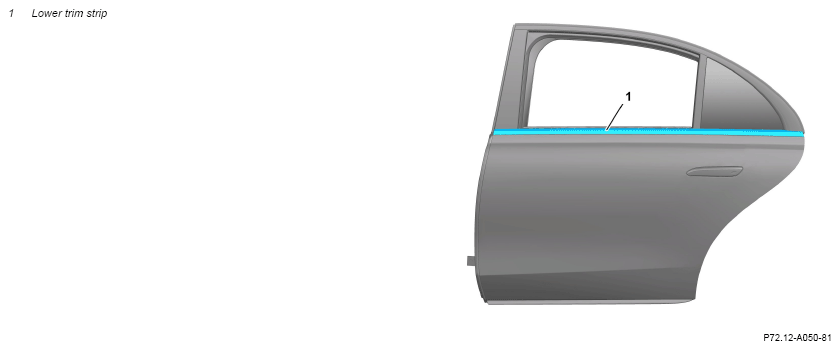

| Fig 1 | |||
| 4 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
