Remove/Install Front Door - AR72.10-P-0500SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	General notes on touch-up applicators and paint spray cans		AH98.00-P-9409-06A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect ground line from battery.		AR54.10-P-0051S
2	Release and disconnect electrical connector of front door (1).
3	Unscrew screw (6).	Screw, door holder to mounting supports	*BA72.10-P-1007-01BA

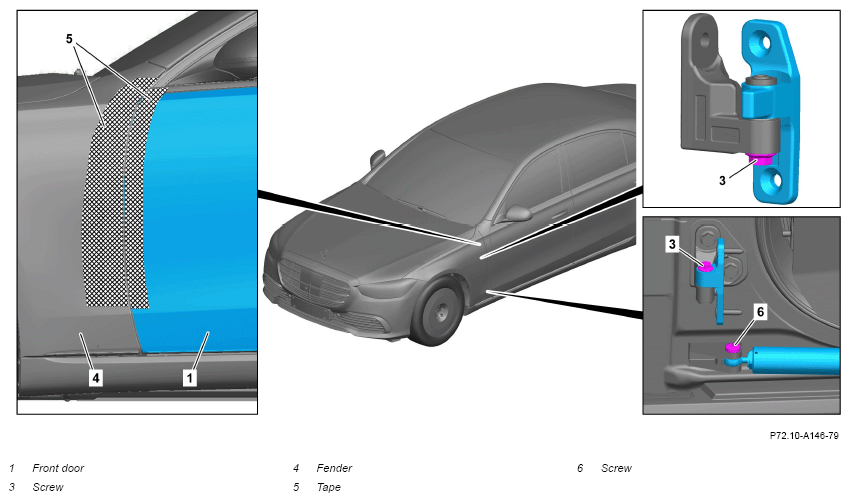

4	Mask off fender (4) and front door (1) in the cross-hatched areas with adhesive tape (5).	Adhesive fabric tape	*BR00.45-Z-1062-02A
5	Remove cover caps from screws (3).
6	Remove screw/bolts (3).
	000 588 38 80 00 Holding device		WS72.00-P-0039B
		Moisten thread on screws (3) with thread locking agent. Use only paints approved by Mercedes-Benz AG: https://xentry.mercedes-benz.com
		Bolt to hinge shaft	*BA72.10-P-1016-01BA
		Thread locking agent, Loctite 243 (10 ml) If there is paint damage in area of screws (3), ↓ Repair paint damage.	*BR00.45-Z-1133-02A
7	Attach engine crane to stabilize front door (1).	Protect trims at front door (1). Otherwise damage will occur. Engine crane serves solely to stabilize front door (1). Commercially available devices/tools  Engine crane Commercially available devices/tools  Carry belt
8	Remove front door (1) from hinges and lay on a suitable base.
	000 588 38 80 00 Holding device		WS72.00-P-0039B
		Align front door (1) so that upward and at a right angle to hinges. Front door (1) will otherwise twist in hinges. Carefully remove front door (1). If the front door (1) comes into contact with the vehicle, the paint can be damaged. Lift front door (1) evenly. Engine crane serves solely to stabilize front door (1). Weight of front door (1) is absorbed by holding device. Commercially available devices/tools  Engine crane Commercially available devices/tools  Carry belt Aid of helper required.
9	Install in the reverse order.
	Check
10	Check gap dimensions of front door (1), correct if necessary.		AR72.10-P-0550SG
