Remove/Install Front Door Window Guide Seal - AR72.10-P-0010S

Model 223

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A

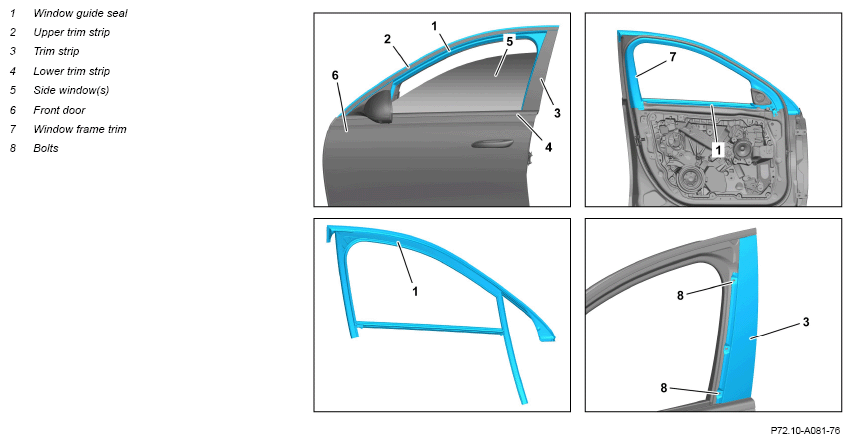

	Remove/install
1	Remove door trim.		AR72.10-P-6575S
2	Completely remove outside mirror.		AR88.70-P-9000S
3	Remove outside mirror seal from front door (6).
4	Position tape under both ends of lower trim strip (4) and affix to door paneling.	Tape protects painting. Otherwise, paint may be damaged when removing lower trim strip (4).
5	Remove lower trim strip (4).	Carefully lift lower trim strip (4) out of fold on door paneling. Otherwise, the lower trim strip (4) may bend and must be replaced.
		Long wedge	Fig 1
6	Remove upper trim strip (2).	Carefully lift upper trim strip (2) out of window guide seal (1). Otherwise, the upper trim strip (2) may bend and must be replaced.
		Long wedge	Fig 1
7	Remove window frame trim (7). '	Replace window frame trim (7) after removal.
8	Unclip inner window guide seal (1) from front door (6).	Long wedge	Fig 1
9	Remove window guide seal (1) near trim strip (3).'
10	Pull out window guide seal (1) near outside mirror.
11	Unscrew screws (8) of trim strip (3).
12	Remove trim strip (3).
13	Remove window guide seal (1) from front door window frame (6).	Ensure that window guide seal (1) is seated correctly. Otherwise leakage can occur. Always replace window guide seal (1).
14	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
