Remove/Install Complete Sideview Mirror - AR88.70-P-9000S
Model 223
except code Z07 (B7 armoring on special protection version)

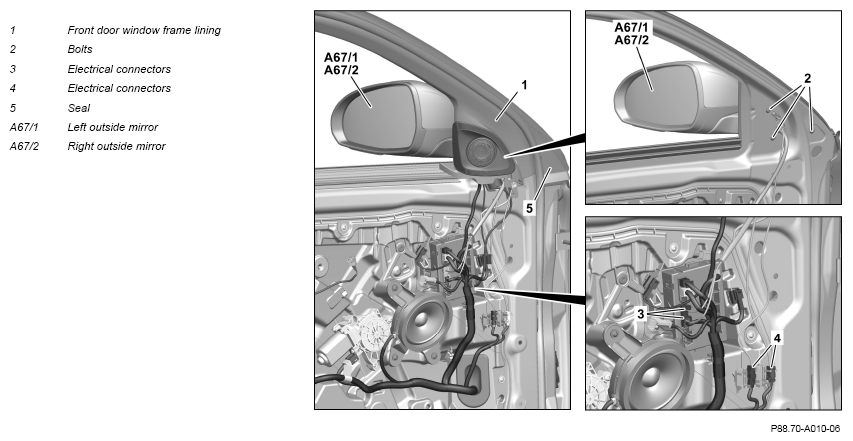

Shown on left front door
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove door trim on front door. | AR72.10-P-6575S | |
| 2 | Remove front door window frame lining (1). | AR72.10-P-0021S | |
| 3 | Disconnect electrical connectors (3). | ||
| 4 | Disconnect electrical connectors (4). | ||
| 5 | Loosen seal (5) until screw behind it (2) is accessible. | ||
| 6 | Remove screws (2). | ||
| 7 | Remove sideview mirror (A67/1, A67/2) from front door and pull out wiring harness. | ||
| 8 | Install in the reverse order. | ||
| Calibrate | |||
| 9 | Calibrate all the cameras in the 360° camera system using the diagnostic system. | Model 223 with code 501 (360° camera) except code Z07 (B7 armoring on special protection version) |
|
| AD00.00-P-2000-06FR |
