Remove/Install Door Stowage Compartment - AR72.12-P-0005S

Model 223

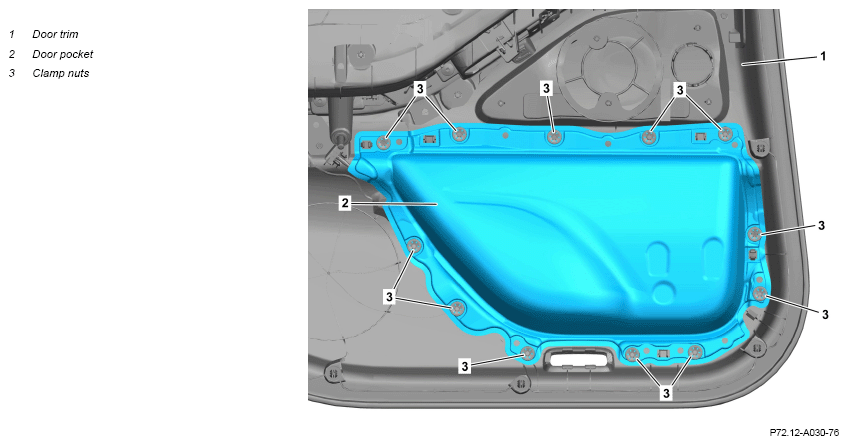

Shown on right rear door

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove door trim (1).		AR72.12-P-1011S
		Door trim (1) must be replaced if door stowage compartment (2) has not yet been replaced.
2	Remove clamp nuts (3) and remove door stowage compartment (2).	If door stowage compartment (2) has already been replaced once.
	Install
3	Clip in new door stowage compartment (2) at door trim (1).
4	Attach clamp nuts (3).	Clamp nuts (3) are part of the repair kit.
5	Install door trim (1).		AR72.10-P-6575S
