Remove/Install Door Drive System Control Unit - AR72.29-P-1150SG
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z38 (Opening and closing assistance, driver's doors)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of door drive system control unit (N69/22, N69/23, N69/23, N69/24). | Only when replacing door drive system control unit (N69/22, N69/23, N69/23, N69/24). | |
| AD00.00-P-2000-06FR | |||
| 2 | Remove corresponding door trim. | Remove/install rear door liner | AR72.12-P-1011S |
| Remove/install front door panel | AR72.10-P-6575S | ||

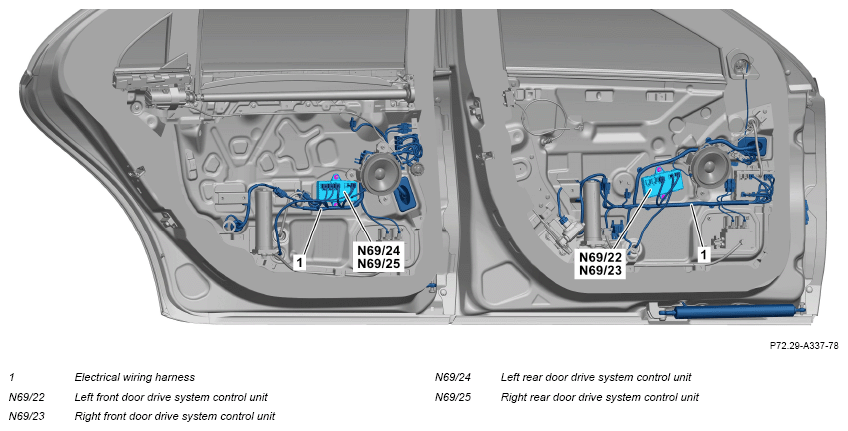

| 3 | Disconnect electrical wiring harness (1) at door drive system control unit (N69/22, N69/23, N69/24, N69/25). | ||
| 4 | Remove nuts at door drive system control unit (N69/22, N69/23, N69/24, N69/25) and remove door drive system control unit (N69/22, N69/23, N69/24, N69/25). |
||
| 5 | Install in the reverse order. |
