Remove/Install Sound System Control Unit - AR82.62-P-7724S
Model 223
with code 810 (Premium sound system)
Model 223
with code 811 (High-End sound system)

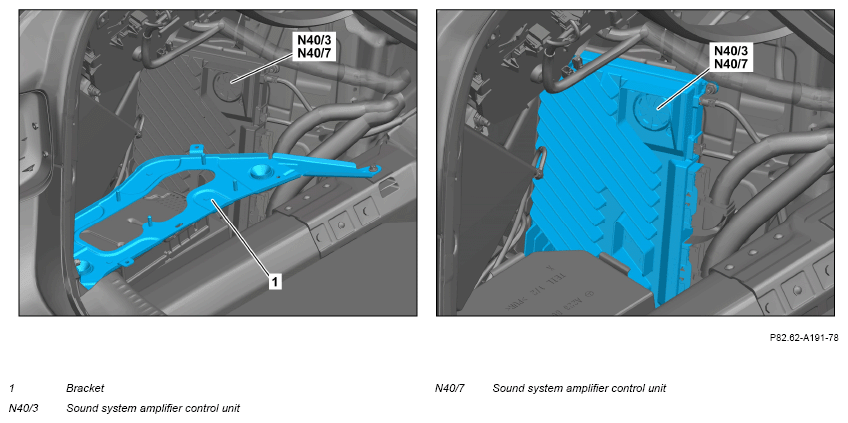

Shown with code 811 (High-end sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove left side trim in trunk. | Model 223 with code 810 (Premium sound system) with code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800SG |
| Model 223 with code 810 (Premium sound system) except code Z07 (B7 armoring on special protection version) Model 223 with code 811 (High-End sound system) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800S | ||
| 3 | Remove subwoofer. | Model 223 with code 811 (High-End sound system) |
AR82.62-P-7841S |
| 4 | Remove holder (1) and place to one side with connected lines. | Model 223 with code 810 (Premium sound system) with code 854 (Rear Seat Entertainment System Plus) Model 223 with code 810 (Premium sound system) with code 97B (Engine noise reduction via speakers (EOC)) Model 223 with code 811 (High-End sound system) |
|
| 5 | Disconnect electrical connectors at sound system amplifier control unit (N40/3, N40/7). | ||
| Notice | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| 6 | Remove sound system amplifier control unit (N40/3, N40/7). | ||
| 7 | Install in the reverse order. | ||
| 8 | Perform commissioning on sound system amplifier control unit (N40/3, N40/7). | ||
| AD00.00-P-2000-06FR |
