Remove/Install Rear Seat Entertainment System Control Unit - AR82.60-P-0006S
Model 223
with code 854 (Rear Seat Entertainment System Plus)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove side trim in left side of trunk. | Model 223 with code 854 (Rear Seat Entertainment System Plus) with code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800SG |
| Model 223 with code 854 (Rear Seat Entertainment System Plus) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800S | ||
| 2 | Remove subwoofer. | Model 223 with code 811 (High-End sound system) with code 854 (Rear Seat Entertainment System Plus) | AR82.62-P-7841S |

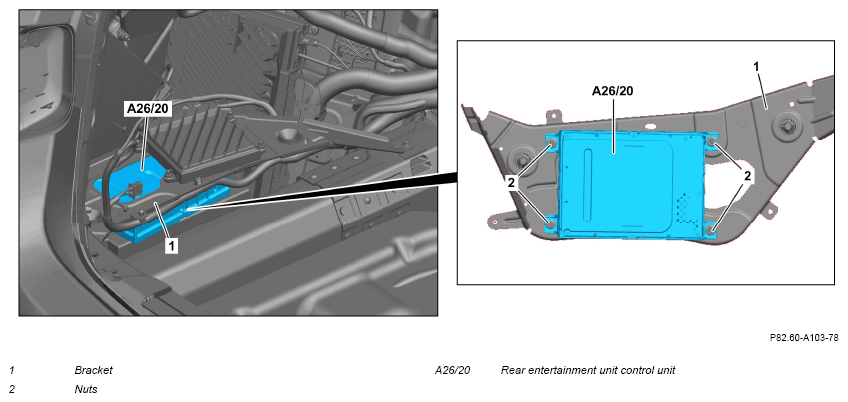

| 3 | Remove bracket (1) with control units and connected lines and place to one side. | ||
| 4 | Disconnect electrical connectors from rear entertainment control unit (A26/20). | ||
| 5 | Remove nuts (2) and remove rear entertainment control unit (A26/20) from holder (1). | ||
| 6 | Install in the reverse order. | ||
| 7 | Commission rear entertainment control unit (A26/20). | ||
| AD00.00-P-2000-06FR |
