Remove/Install Panoramic Sunroof Drive Guide Rail - AR77.21-P-0430MFB
Model 243, 247
with code 413 (Panoramic sliding sunroof/glass roof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove rear roller sunblind. | AR77.21-P-0201MFB | |
| 2 | Remove left and right drive cable of the roller sunblind from the panoramic roof. | AR77.21-P-0230MFB | |
| 3 | Remove panoramic sliding sunroof motor. | AR77.21-P-6995MFB | |

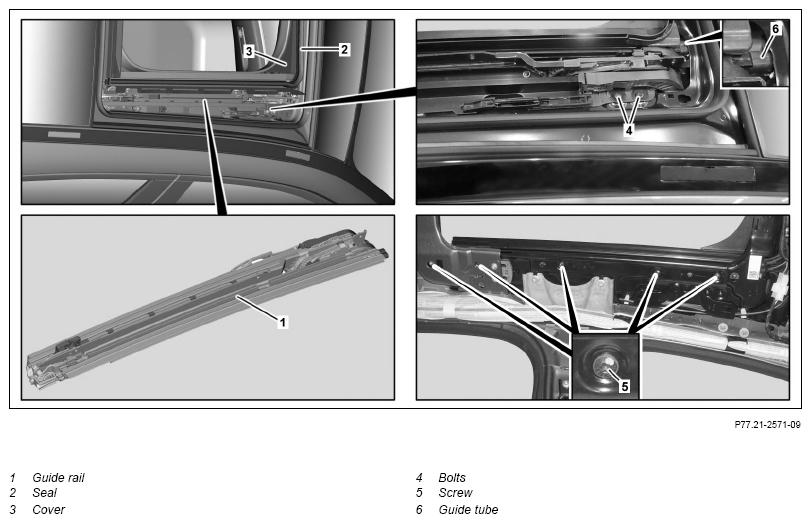

| 4 | Remove wind deflector. | AR77.21-P-0101MFB | |
| 5 | Remove seal (2). | ||
| 6 | Remove cover (3). | ||
| 7 | Remove screws/bolts (4). | ||
| 8 | Remove bolts (5). | ||
| 9 | Remove guide rail (1) from the panoramic sliding sunroof frame and, in doing so, pull panoramic roof drive cable out of the guide tube (6). | ||
| 10 | Install in the reverse order. |
