Remove/Install Wind Deflector for Panoramic Sliding Sunroof - AR77.21-P-0101MFB
Model 243, 247
with code 413 (Panoramic sliding sunroof/glass roof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Completely open panoramic sliding sunroof. | ||

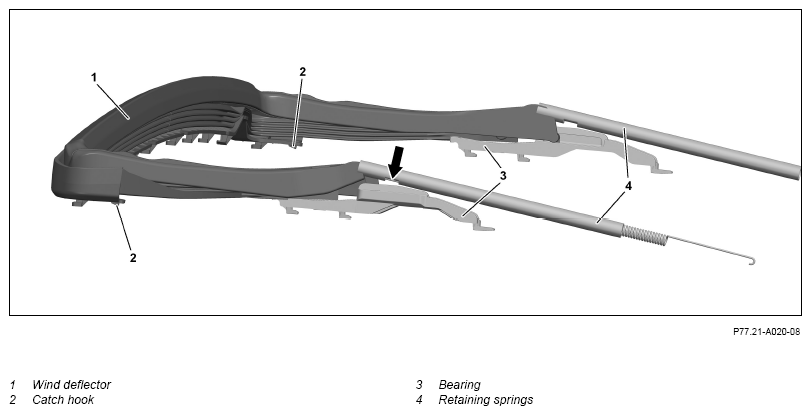

| 2 | Unhook left and right retaining spring (4) from the wind deflector (1) and from the panoramic sliding sunroof frame. | ||
| 3 | Release wind deflector (1) from the catch hooks (2) and remove toward the rear. | ||
| 4 | Position wind deflector (1) vertically, move out of the left and right bearing (3), and remove. | ||
| Check | |||
| 5 | Check bearings (3) for damage. | If the bearings (3) are damaged, ↓ replace bearings (3). |
|
| AR77.21-P-0102MFB | |||
| 6 | Install in the reverse order. |
