Remove/Install Belt-Driven Starter Alternator - AR15.40-P-5060MFA

Engine 260 in model 118, 177, 247

with code B01 (48V technology)

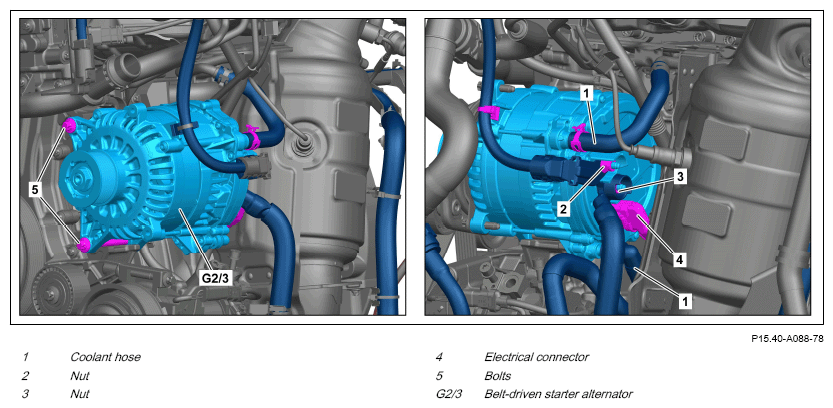

Fig 1: Belt-Driven Starter Alternator Components Location - Engine 260 In Model 247 With Code B01

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Detach ground line of on-board electrical system battery.		AR54.10-P-0003MFA
2	Drain coolant of low-temperature circuit.	Only install lower engine compartment lining after leak test.	AR20.00-P-2014MFA
3	Remove refrigerant compressor.	Only install lower engine compartment lining after leak test.	AR83.55-P-5310MFD
4	Remove poly-V-belt tensioning device.		AR13.25-P-3220MFI
5	Remove coolant hoses (1).		AR20.20-P-7441-01RQ
		Hose clamp pliers	Fig 3
		Record plug	Fig 4
6	Remove cover caps of nuts (2, 3).
7	Remove nut (2) and remove ground line.	Nut, ground line to starter-alternator	*BA15.40-P-1002-02C
		Dismantling tool	Fig 2
8	Remove nut (3) and remove positive line.	Nut, positive line to starter-alternator	*BA15.40-P-1001-02C
9	Release and disconnect electrical connector (4).
10	Remove the screws (5).	Secure belt-driven starter alternator (G2/3) against falling down.	AR15.40-P-0002-01MFA
		Bolt, starter alternator to major assembly carrier/crankcase	*BA15.40-P-1003-02C
11	Remove belt-driven starter alternator (G2/3) downwards.
12	Install in the reverse order.
	Check
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Perform engine test run and check belt driven starter alternator (G2/3) for proper operation and leak tightness.
