Drain/Fill Coolant For 48 V On-Board Electrical System Coolant Circuit - AR20.00-P-2014MFA
Model 118, 177, 247
With Code B01 (48V technology)
Shown on engine 260
Shown on engine 282.8
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||
| 1 | Remove cap from coolant expansion reservoir. | ||
| 2 | Remove front and center bottom engine compartment linings. | Model 118, 177, 247 with engine 260 with code B01 (48V technology) with code M016 (Uprated engine) | AR61.20-P-1105MFR |
| Model 118, 177, 247 with engine 282 with code B01 (48V technology) | AR61.20-P-1105MFA | ||
| Drain off | |||

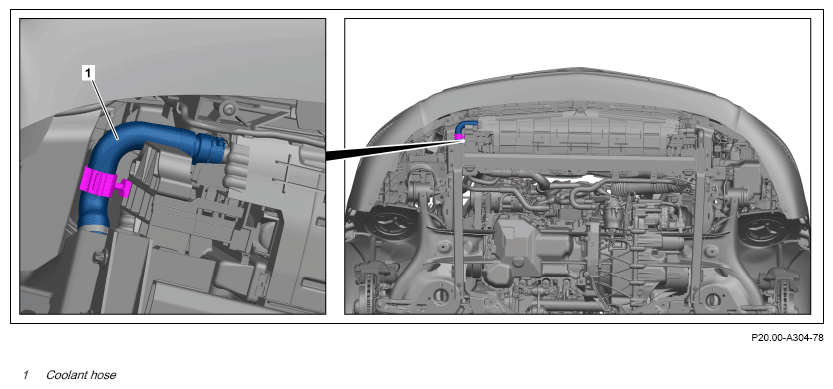

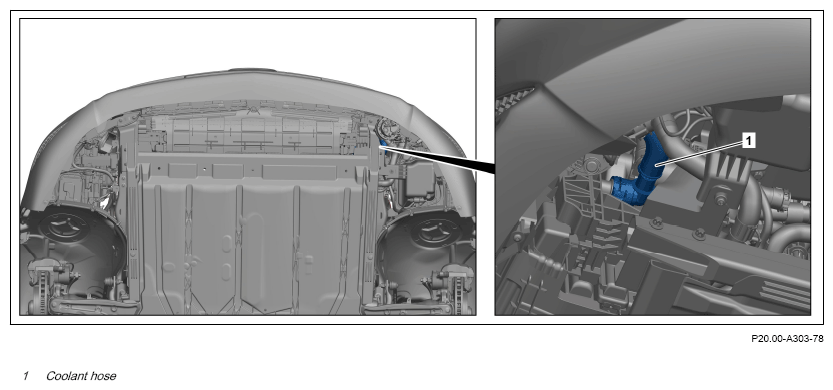

| 3 | Remove coolant hose (1) at low-temperature circuit cooler and collect escaping coolant in suitable container. | AR20.20-P-7441-01RQ | |
| 4 | Attach coolant hose (1) to low-temperature circuit cooler. | AR20.20-P-7441-01RQ | |
| Pour in | |||
| 5 | Pour in coolant and bleed engine cooling system. | Model 118, 177, 247 with engine 260, 282 with code B01 (48V technology) |
AR20.00-P-1142-04A |
Engine cooling system |
*BF20.00-P-1001-02AB | ||
Cooling system |
*BF20.00-P-1001-06G | ||
| Fig 3 | |||
| Fig 1 | |||
| Fig 2 | |||
| Fig 4 | |||
| Check | |||
| 6 | Check engine cooling system for leak tightness. | Model 118, 177, 247 with engine 260, 282 with code B01 (48V technology) | AR20.00-P-1010MFD |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run and check engine cooling system for proper operation. | ||
| Install | |||
| 8 | Install front and center bottom engine compartment linings. | Model 118, 177, 247 with engine 260 with code B01 (48V technology) with code M016 (Uprated engine) | AR61.20-P-1105MFR |
| Model 118, 177, 247 with engine 282 with code B01 (48V technology) | AR61.20-P-1105MFA |
ENGINE COOLING SYSTEM
| Number | Designation | Engine 260 in model 118 | Engine 260 in model 177 with code M016 (Uprated engine) | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02AB | Engine cooling system | Workshop replacement quantity | Liter | ≈8, 9 | ≈8, 2 | |
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Fluids specifications | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
ENGINE COOLING SYSTEM
| Number | Designation | Engine 260 in model 177 except code M016 (Uprated engine) | Engine 260 in model 247 with code M016 (Uprated engine) | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02AB | Engine cooling system | Workshop replacement quantity | Liter | ≈10 | ≈8, 2 | |
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Fluids specifications | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
ENGINE COOLING SYSTEM
| Number | Designation | Engine 260 in model 247 except code M016 (Uprated engine) | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02AB | Engine cooling system | Workshop replacement quantity | Liter | ≈10 | |
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-06A | ||||
| Fluids specifications | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 282 in model 118 | Engine 282 in model 177 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-06G | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈6, 8 | ≈6, 8 |
| Antifreeze/water | to -37°C | % | 50/50 | 50/50 | ||
| as from -38°C | % | 55/45 | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Fluids specifications | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
COOLING SYSTEM
| Number | Designation | Engine 282 in model 247 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-06G | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈6, 8 |
| Antifreeze/water | to -37°C | % | 50/50 | ||
| as from -38°C | % | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-06A | ||||
| Fluids specifications | BB00.40-P-0326-06A | ||||
