Remove/Install Upper Engine Stabilizer Mount - AR22.10-P-1145MFC

Engine 260 in model 118, 177, 247

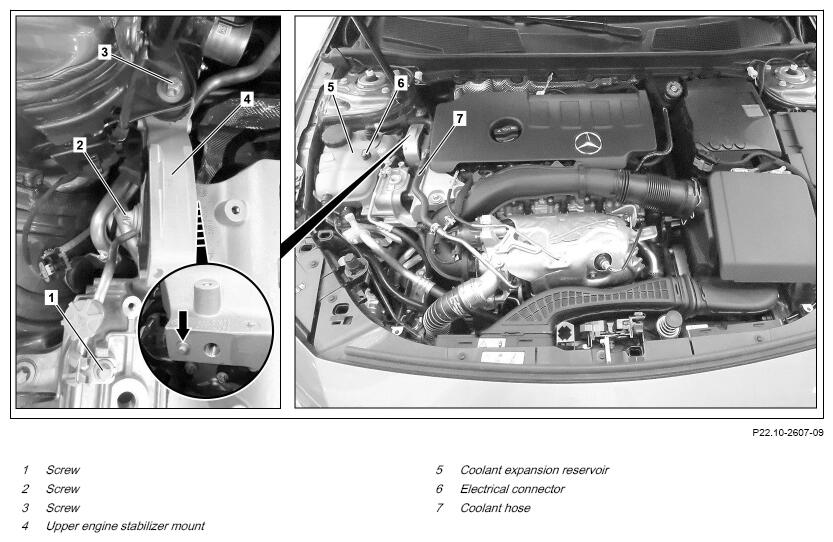

Fig 1: Upper Engine Stabilizer Mount Components Location - Engine 260 In Model 247

Courtesy of MERCEDES-BENZ USA

Shown on engine without code M016 (performance-enhanced engine)

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Unclip coolant hose (7) at right engine mount.	Dismantling tool	Fig 2
2	Release and disconnect electrical connector (6) and remove electric line from the coolant expansion reservoir (5).	Dismantling tool	Fig 2
3	Place coolant expansion reservoir (5) to one side with connected coolant lines.		AR20.30-P-4949MFD
4	Remove screw (1) of refrigerant line at right engine mount and slightly press refrigerant line to side.	Screw, refrigerant line to engine mount/body	*BA83.30-P-1004-01T
5	Remove screw (2) of upper engine stabilizer mount (4) at right engine mount.	Screw, engine stabilizer mount at top to engine mount	*BA22.10-P-1006-03P
6	Remove screw (3) of upper engine stabilizer mount (4) at mount at suspension strut tower.	Screw, engine mount engine stabilizer mount at top to body	*BA22.10-P-1007-03P
7	Remove upper engine stabilizer mount (4).	: Ensure guide pin (arrow) is correctly seated at right engine mount in elongated hole of upper engine stabilizer mount (4).
	Check
8	Check right engine mount.	If damage or wear to right engine mount is recognizable ↓ Replace right engine mount.	AR22.10-P-1102MFD
9	Install in the reverse order

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
