Remove/Install Armrest - AR91.12-P-1744MEM
Model 167.9
With Code M036 (Maybach Version)
except code 224 (Individual rear seats)
except code 226 (7-seater with 3rd seat row)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove seat backrests in the rear passenger compartment. | AR91.12-P-1713MEM | |
| 2 | Remove trim strips behind rear seats. | AR68.30-P-1460MEM | |

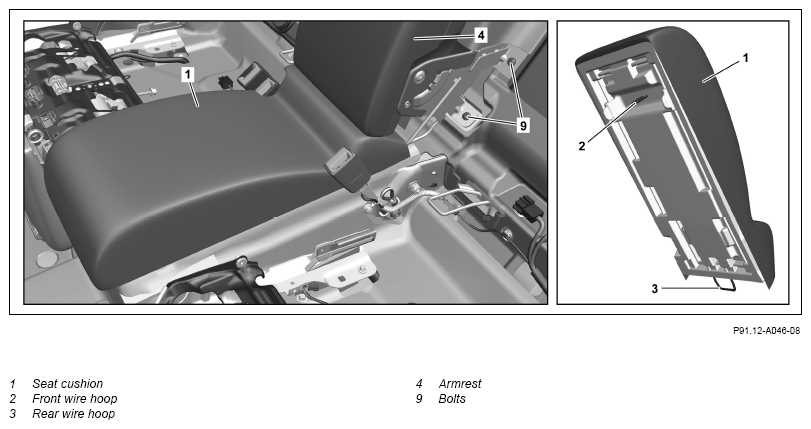

| 3 | Pull seat cushion (1) upward out of pilot bushing using front wire hoop (2). | ||
| 4 | Move seat cushion (1) forward and remove. | ||

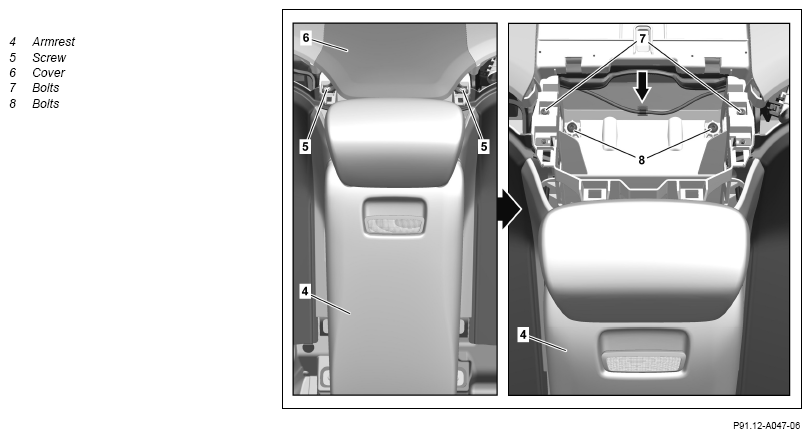

| 5 | Fold down armrest (4). | ||
| 6 | Unscrew screws (5), pull cover (6) forward and remove. | ||
| 7 | Unclip electric line from armrest (4) (arrow). | ||
| 8 | Remove bolts_(7). | ||
| 9 | Mark position of screws (8) and unscrew screws (8). | *BA91.12-P-1020-03M | |
| 10 | Fold armrest (4) upward. | ||
| 11 | Unscrew screws (9) on left and right side. | *BA91.12-P-1020-03M | |
| 12 | Remove armrest (4) until electrical connectors on rear side are accessible. | Do not crush or kink or subject electric lines to tension. Otherwise electrical lines may be damaged. |
|
| 13 | Release and disconnect electrical connectors from rear side of armrest (4) and remove armrest (4) from vehicle. | ||
| 14 | Install in the reverse order. |
REAR SEATS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.12-P-1020-03M | Screw, armrest to body | Nm | 6 |
