Remove/Install Trim Strip Behind Rear Seat - AR68.30-P-1460MEM
Model 167.9
With Code M036 (Maybach version)
Shown on left side of vehicle With Code 224 (Design individual rear seat system)
| Remove/install | |||
| 1 | Remove C-pillar trim. | AR68.30-P-4490MEX | |
| 2 | Adjust seat backrests in the rear passenger compartment to the foremost position. | ||

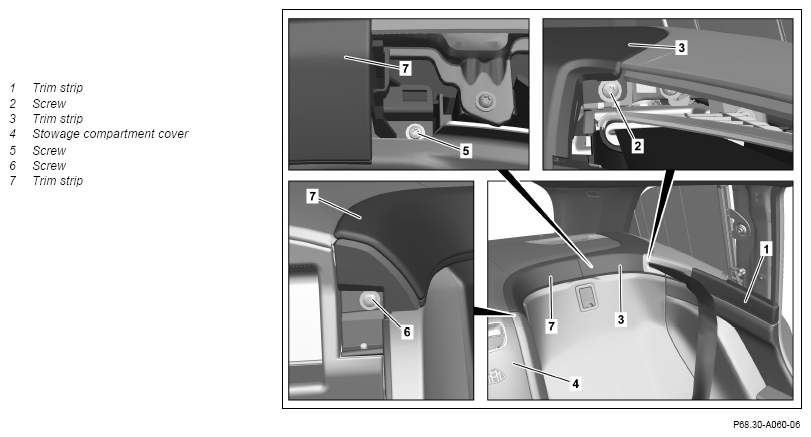

| 3 | Unclip trim strip (1), disconnect the electrical connector for the ambient lighting, and remove trim strip (1). | Fig 1 | |
| 4 | Remove screw (2). | ||
| 5 | Unclip trim strip (3), disconnect the electrical connector for the ambient lighting, and remove trim strip (3). | Fig 1 | |
| 6.1 | Fold down the stowage compartment cover (4). | Model 167.9 with code 224 (Rear individual seat design) with code M036 (Maybach version) | |
| 6.2 | Fold down the armrest. | Model 167.9 with code M036 (Maybach version) except code 224 (Rear individual seat design) | |
| 7 | Remove screw (5). | The trim strip (7) is attached with one screw each on the left and right sides of the vehicle (5). Remove trim strips (1, 3) on both sides of the vehicle in order to provide access to the screws (5). |
|
| 8 | Remove screw (6). | Model 167.9 with code 224 (Rear individual seat design) with code M036 (Maybach version) | |
| 9 | Remove the seat belt end fitting of the lap belt in the rear passenger compartment. | Model 167.9 with code M036 (Maybach version) except code 224 (Rear individual seat design) | AR91.40-P-0683MEM |
| 10 | Unclip trim strip (7), disconnect the electrical connector for the ambient lighting, and remove trim strip (7). | Fig 1 | |
| 11 | Install in the reverse order. |
