Remove/Install Backrest In Rear - AR91.12-P-1713MEM

Model 167.9

With Code M036 (Maybach Version)

Courtesy of MERCEDES-BENZ USA

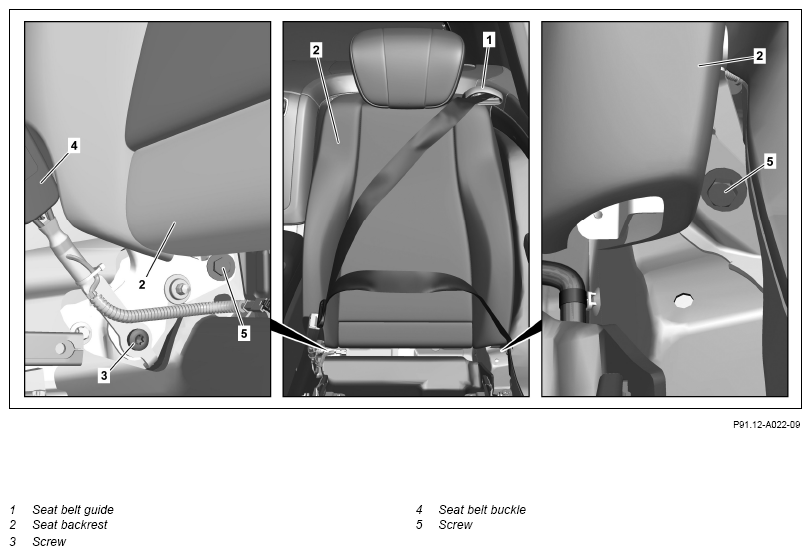

Shown on left side of vehicle with code 224 (Design individual rear seat system)

Shown on left side of vehicle with code 406 (Multicontour seats in rear passenger compartment)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion.		AR91.12-P-1021MEM
2	Push seat belt guide (1) at pivot point into seat backrest (2) up to end stop, then turn 90° and pull upward out of seat backrest (2).	Model 167.9 with code M036 (Maybach version) except code 224 (Rear individual seat design) A second seat belt guide (1) for the lap belt is present on the left seat backrest (2). The seat belt guide (1) remains on the seat belt.
3	Remove screw (3) and place seat belt buckle (4) to one side with electric line still connected.	Make sure that the seat belt buckle (4) is positioned correctly. Bolt, rear seat belt buckle	*BA91.40-P-1009-01U
4	Remove screws (5) and tilt seat backrest (2) forward.	Screw, seat backrest frame to body	*BA91.12-P-1017-03M

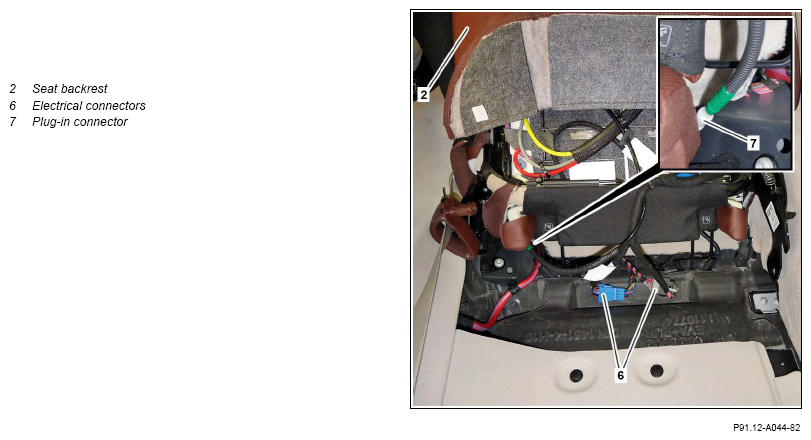

5	Release and disconnect electrical connectors (6).	The number of electrical connectors (6) varies depending on the vehicle equipment.
6	Disconnect connector coupling (7) of compressed-air line.	Model 167.9 with code 406 (Rear multicontour seat) with code M036 (Maybach version)
7	Remove seat backrest (2) from vehicle.
8	Install in the reverse order.
