Remove/Install Liftgate Hinge - AR72.20-P-2656ME
Model 167.1/9
MODIFICATION NOTES
| 12.06.2019 | Operation steps revised. | Operation steps 7, 9 |
Shown on model 167.1 with code 810 (Sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | General notes on touch-up applicators and paint spray cans | AH98.00-P-9409-06A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||
| 1 | Remove rear spoiler. | AR72.20-P-4000ME | |
| 2.1 | Lower roof lining until screws (5) can be accessed. | Model 167.1/9 except code 810 (Sound system) except code 811 (Advanced sound system) |
AR68.30-P-4300ME |
| 2.2 | Lower roof lining until cover (1) can be accessed. | Model 167.1/9 with code 810 (Sound system) Model 167.1/9 with code 811 (Advanced sound system) |
AR68.30-P-4300ME |
| 3 | Remove cover (1). | Model 167.1/9 with code 810 (Sound system) Model 167.1/9 with code 811 (Advanced sound system) |
|

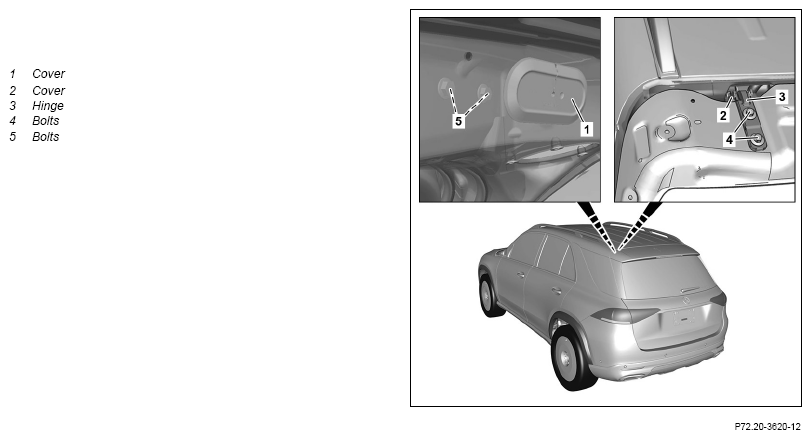

| 4 | Support tailgate. | Fig 1 | |
| 5 | Remove left and/or right cover (2) at hinge (3) of tailgate on left and/or right. | ||
| 6 | Mark installation position of left and/or right hinge (3) at roof frame and at tailgate using suitable means. | ||
| 7 | Remove screws (4) from the liftgate. | ||
| 8 | Remove screws (5) from the roof frame and remove left and right hinge (3). | ||
| Install | |||
| 9 | Align hinge (3) with the installation marking on the roof frame and tighten screws (5). | ||
| *BA72.20-P-1008-02J | |||
| 10 | Slightly manually tighten screws (4) on tailgate. | ||
| 11 | Remove support. | Fig 1 | |
| 12 | Adjust trunk lid. | AR72.20-P-0002ME | |
| 13 | Install left and/or right cover (2) at hinge (3) of tailgate on left and/or right. | ||
| 14 | Install cover (1). | Model 167.1/9 with code 810 (Sound system) Model 167.1/9 with code 811 (Advanced sound system) |
|
| 15 | Attach roof lining. | AR68.30-P-4300ME | |
| 16 | Install rear spoiler. | AR72.20-P-4000ME |
LIFTGATE
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA72.20-P-1008-02J | Bolt/nut, hinge for liftgate to body | Nm | 36 |
