Adjust Liftgate - AR72.20-P-0002ME

Model 167.1/9

MODIFICATION NOTES

24.01.2022 Lower roof lining in area of hinges (3). Operation step 8.
G15038653Courtesy of MERCEDES-BENZ USA
G15038654Courtesy of MERCEDES-BENZ USA
G15038655Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
  General information on MB materials   AH98.00-P-9409-03A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on HANDS-FREE ACCESS   AH80.61-P-0001-01A
INSPECT Check
1 Check gap dimensions at liftgate (1).   AR60.00-P-0900-01ME
    Liftgate to rear bumper *BE60.00-P-1016-01LA
    Sidewall to liftgate *BE60.00-P-1013-01LA
    Outside of taillamp to inside of taillamp *BE60.00-P-1018-01LA
    Rear spoiler to roof *BE60.00-P-1022-01LA
    Rear window to rear spoiler *BE60.00-P-1020-01LA
    Side spoiler to rear side window *BE60.00-P-1023-01LA
    SPECIAL TOOL Feeler gauge Fig 1
  Adjusting in x-direction (X) and y-direction (Y)
2 Remove center rear spoiler.   AR72.20-P-4000ME

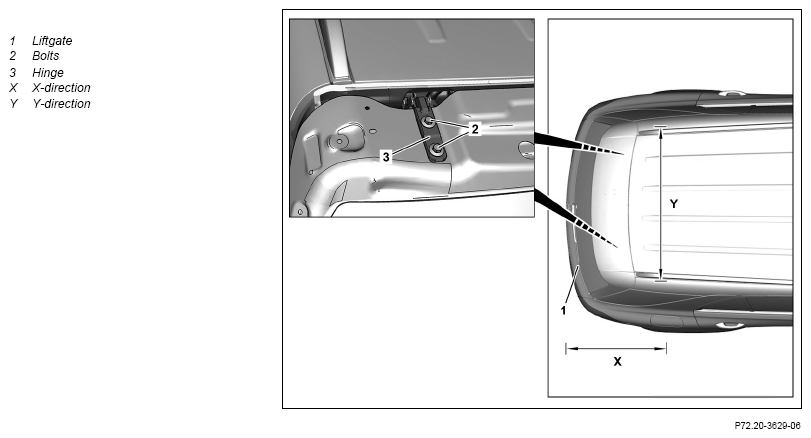

3 Release screws (2) at left and right hinge (3).
4 Adjust liftgate (1) in the x-direction (X) or y-direction (Y).   AR60.00-P-0900-01ME
    IMPORTANT Aid of helper required.
    Outside of taillamp to inside of taillamp *BE60.00-P-1018-01LA
    Sidewall to liftgate *BE60.00-P-1013-01LA
    Liftgate to rear bumper *BE60.00-P-1016-01LA
    Rear window to rear spoiler *BE60.00-P-1020-01LA
    Side spoiler to rear side window *BE60.00-P-1023-01LA
    SPECIAL TOOL Feeler gauge Fig 1
5 Tighten released screws (2) at hinges (3) IMPORTANT Aid of helper required.
    TORQUE SPECIFICATION Bolt, hinge to liftgate *BA72.20-P-1005-02J
6 Repair paintwork damage at screws (2) using suitable touch-up paint pen.
Notice  General notes on touch-up applicators and paint spray cans   AH98.00-P-9409-06A
7 Install center rear spoiler.   AR72.20-P-4000ME
  Adjusting in Z-direction (Z)
8 Lower roof lining in area of hinges (3).   AR68.30-P-4300ME

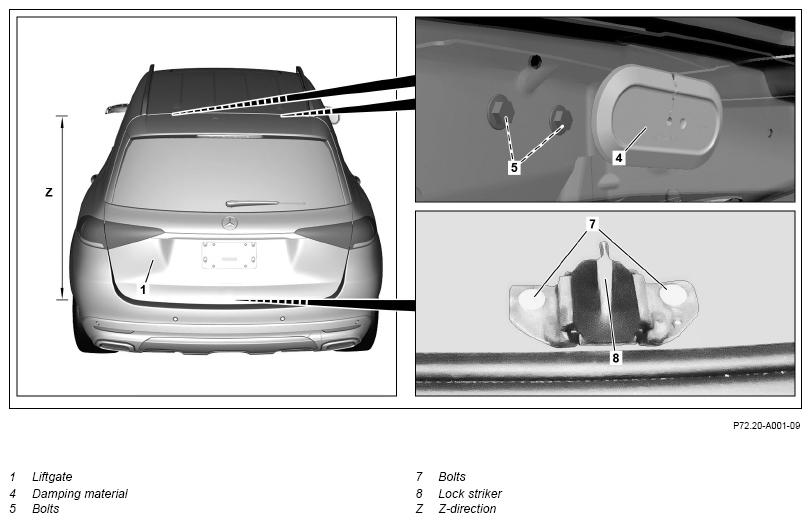

9 Remove left and right damping (4) over screws (5).
10 Release screws (5) at left and right hinge (3).
11 Adjust transition between liftgate (1) and roof or panoramic roof in z-direction (Z).   AR60.00-P-0900-01ME
    IMPORTANT Aid of helper required.
Upper edge of tailgate (1) must be flush with
roof or panoramic roof.
    Rear spoiler to roof *BE60.00-P-1022-01LA
    Outside of taillamp to inside of taillamp *BE60.00-P-1018-01LA
    Sidewall to liftgate *BE60.00-P-1013-01LA
    Liftgate to rear bumper *BE60.00-P-1016-01LA
    Rear window to rear spoiler *BE60.00-P-1020-01LA
    Side spoiler to rear side window *BE60.00-P-1023-01LA
    SPECIAL TOOL Feeler gauge Fig 1
12 Tighten screws (5) on hinges (3). IMPORTANT Aid of helper required.
    TORQUE SPECIFICATION Bolt/nut, hinge for liftgate to body *BA72.20-P-1008-02J
13 Repair paintwork damage at screws (5) using suitable touch-up paint pen.
Notice  General notes on touch-up applicators and paint spray cans   AH98.00-P-9409-06A
14 Install left and right damping (4).
15 Install headliner.   AR68.30-P-4300ME
  Adjusting gap dimensions of tailgate (1) to bumper and/or tail lamp
16 Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).

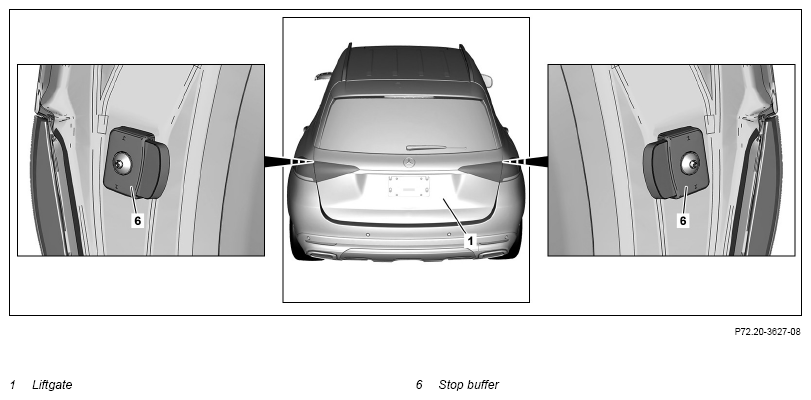

17 Screw stop buffers (6) fully into tailgate (1).
18 Adjust stop buffers (6) so that tailgate (1) closes and gap dimensions are adjusted.   AR60.00-P-0900-01ME
    IMPORTANT Stop buffers (6) must be in contact with bodyshell.
    Rear spoiler to roof *BE60.00-P-1022-01LA
    Outside of taillamp to inside of taillamp *BE60.00-P-1018-01LA
    Sidewall to liftgate *BE60.00-P-1013-01LA
    Liftgate to rear bumper *BE60.00-P-1016-01LA
    Rear window to rear spoiler *BE60.00-P-1020-01LA
    Side spoiler to rear side window *BE60.00-P-1023-01LA
    SPECIAL TOOL Feeler gauge Fig 1
19 Carefully close liftgate (1) and open again. IMPORTANT Ensure the liftgate (1) closes correctly. If tailgate (1) does not correctly close,
↓
adjust stop buffers (6) again.
  Adjusting the transitions to the edges of the fenders and the D-pillars
20 Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
21 Remove rear-end center-section trim.   AR68.30-P-4786ME
22 Release screws (7) at lock striker (8).
23 Adjust transitions of tailgate (1) to edges of fenders and D-pillars by moving lock striker
(8).		   AR60.00-P-0900-01ME
    IMPORTANT Liftgate (1) must be flush with edges of fender and D-pillars.
    Liftgate to rear window *BE60.00-P-1019-01LA
    Rear spoiler to roof *BE60.00-P-1022-01LA
    Outside of taillamp to inside of taillamp *BE60.00-P-1018-01LA
    Sidewall to liftgate *BE60.00-P-1013-01LA
    Liftgate to rear bumper *BE60.00-P-1016-01LA
    SPECIAL TOOL Feeler gauge Fig 1
24 Tighten bolts (7) on lock striker (8). TORQUE SPECIFICATION Screw/bolt, lock striker to body *BA72.20-P-1006-02J
25 Repair paintwork damage at screws (7) using suitable touch-up paint pen.
Notice  General notes on touch-up applicators and paint spray cans   AH98.00-P-9409-06A
26 Install rear-end center-section trim.   AR68.30-P-4786ME
  Calibrate
27 Calibrate reversing camera (B84/3) using vehicle diagnosis system and calibration device. Model 167.1/9
with code 218 (Rear view camera) except code 235 (Active Parking Assist)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06ME
    SPECIAL TOOL Calibration device Fig 2
28 Calibrate reversing camera 360° system (B84/10) using vehicle diagnosis system and calibration device. Model 167.1/9
with code 501 (360° camera)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06ME
    SPECIAL TOOL Calibration device Fig 2
GAP DIMENSIONS

Number Designation Model 167.1 Model 167.9
BE60.00-P-1013-01LA Sidewall to liftgate Dimension "K" mm 4 (+1/-0, 5) 4, 5 (+ 0, 5)
For picture, see   AR60.00-P-0900-01ME AR60.00-P-0900-01ME
GAP DIMENSIONS

Number Designation Model 167.1 Model 167.9
BE60.00-P-1016-01LA Liftgate to rear bumper Dimension "N1" mm 4, 5 (±1, 5) 4, 5 (±1, 5)
Dimension "N2" mm 5, 5 (±1, 5) 5, 5 (±1, 5)
For picture, see   AR60.00-P-0900-01ME AR60.00-P-0900-01ME
GAP DIMENSIONS

Number Designation Model 167.1 Model 167.9
BE60.00-P-1018-01LA Outside of taillamp to inside of taillamp Dimension "P" mm 4 (±1, 5) 4, 5 (±1, 5)
For picture, see   AR60.00-P-0900-01ME AR60.00-P-0900-01ME
GAP DIMENSIONS

Number Designation Model 167.1 Model 167.9
BE60.00-P-1019-01LA Liftgate to rear window Dimension "Q" mm 2, 5 (±1, 0) 2, 5 (±1, 0)
For picture, see   AR60.00-P-0900-01ME AR60.00-P-0900-01ME
GAP DIMENSIONS

Number Designation Model 167.1 Model 167.9
BE60.00-P-1020-01LA Rear window to rear spoiler Dimension "R1" mm 1, 5 (±1, 0) 1, 5 (±1, 0)
For picture, see   AR60.00-P-0900-01ME AR60.00-P-0900-01ME
GAP DIMENSIONS

Number Designation Model 167.1 Model 167.9
BE60.00-P-1022-01LA Rear spoiler to roof Dimension "S" mm 4, 5 (±1, 0) 4, 5 (±1, 0)
For picture, see   AR60.00-P-0900-01ME AR60.00-P-0900-01ME
GAP DIMENSIONS

Number Designation Model 167.1 Model 167.9
BE60.00-P-1023-01LA Side spoiler to rear side window Dimension "T" mm 4 (-0, 5/+1, 5) 4 (-0, 5/+1, 5)
For picture, see   AR60.00-P-0900-01ME AR60.00-P-0900-01ME
LIFTGATE

Number Designation Model 167
BA72.20-P-1005-02J Bolt, hinge to liftgate Nm 36
LIFTGATE

Number Designation Model 167
BA72.20-P-1006-02J Screw/bolt, lock striker to body Nm 9
LIFTGATE

Number Designation Model 167
BA72.20-P-1008-02J Bolt/nut, hinge for liftgate to body Nm 36
Fig 1: Identifying Feeler Gauge (129 589 03 21 00)
G13659521Courtesy of MERCEDES-BENZ USA
