Remove/Install Rear Spoiler - AR72.20-P-4000ME
Model 167.1/9
MODIFICATION NOTES
| 28.08.2020 | Operation steps added. | Operation steps 9, 10 | |
| 28.08.2020 | General information added. | Operation steps 4, 5, 8 |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove upper liftgate trim. | AR72.20-P-6631ME | |
| 3 | Release and disconnect electrical connectors (2) and wash water hose coupling (3). | ||
| 4 | Remove nuts (4). | ||
| *BA72.20-P-1011-02J | |||

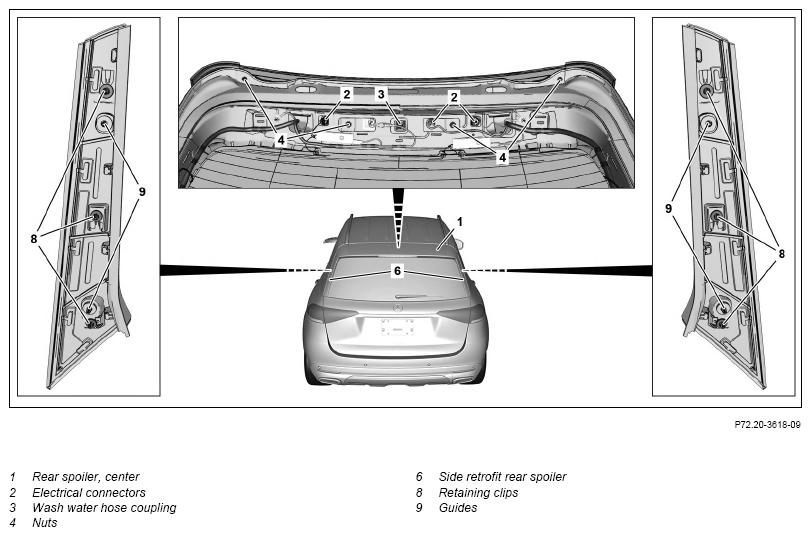

| 5 | Unclip center rear spoiler (1) from the liftgate and remove. | ||
| Fig 1 | |||

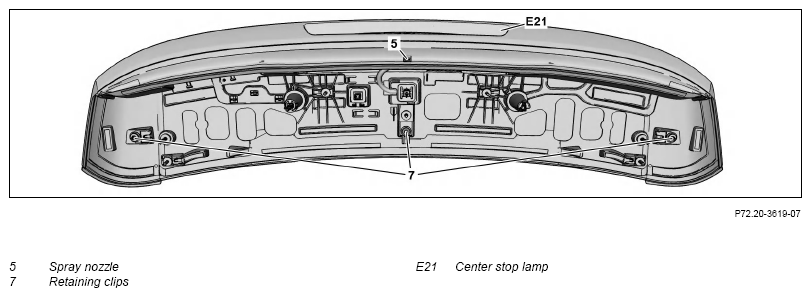

| 6 | Remove spray nozzle (5). | When installing a new center rear spoiler (1). | |
| 7 | Remove center brake lamp (E21). | When installing a new center rear spoiler (1). | |
| AR82.10-P-5376ME | |||
| 8 | Unclip side retrofit rear spoiler (6) on the left and right and remove. | When unclipping, do not prop up against the rear window. Otherwise the rear window can be damaged. |
|
| Fig 1 | |||
| Check | |||
| 9 | Check seals on center rear spoiler (1) for damage. | If damage is present: ↓ Replace center rear spoiler (1). |
|
| 10 | Check seals on side retrofit rear spoiler (6) on left or right for damage. | If damage is present: ↓ Replace side retrofit rear spoiler (6) on left or right. |
|
| 11 | Check guides (9) on side retrofit rear spoiler (6) on left or right for damage. | If damage is present: ↓ Replace side retrofit rear spoiler (6) on left or right. |
|
| 12 | Install in the reverse order. |
LIFTGATE
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA72.20-P-1011-02J | Nut, rear spoiler to tailgate | Nm | 8 |
